(Weight - 28 lbs. / box of 50)

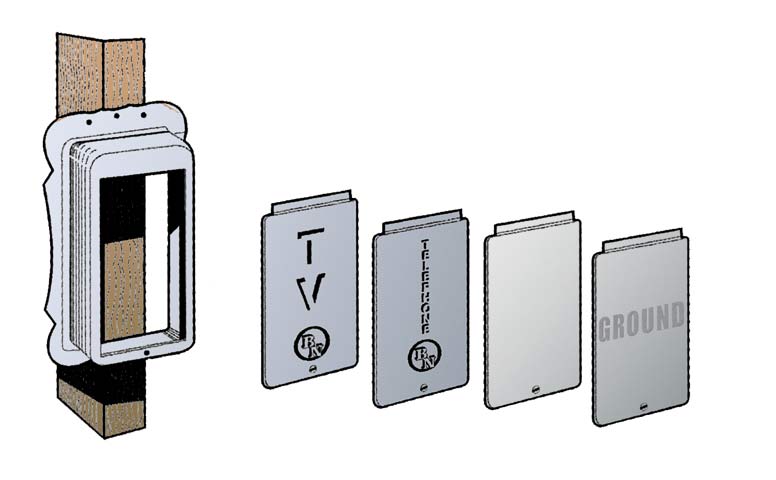

Open back simplifies mounting and connections. The service box is nailed or screwed to a framing stud, flush with the mounting surface prior to the application of stucco or siding.  The cover is secured with a slotted screw. Also available with the following  embossed lids:

• BN900 - “Telephone” embossed on the lid
• BN900TV - “TV” embossed on the lid
• BN900G - “Ground” embossed on the lid
• BN900X - Blank lid

(Weight - 36 lbs. / box of 40)

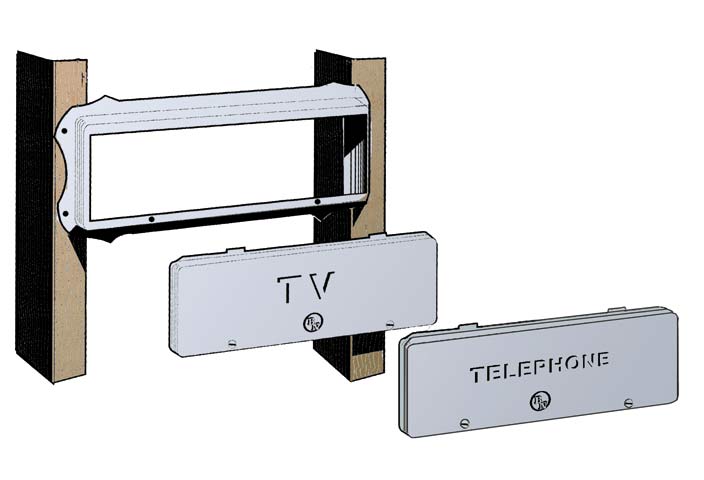

Open back simplifies mounting and connections. The service box is either nailed or screwed between two 16” centered studs, flush with the mounting surface prior to the application of stucco or siding.  The cover is secured with two slotted screws. Available with the following embossed lids:

• BN1020 -“TELEPHONE”
• BN1020TV -“TV”

(Weight - 360 lbs. per pallet of 50)

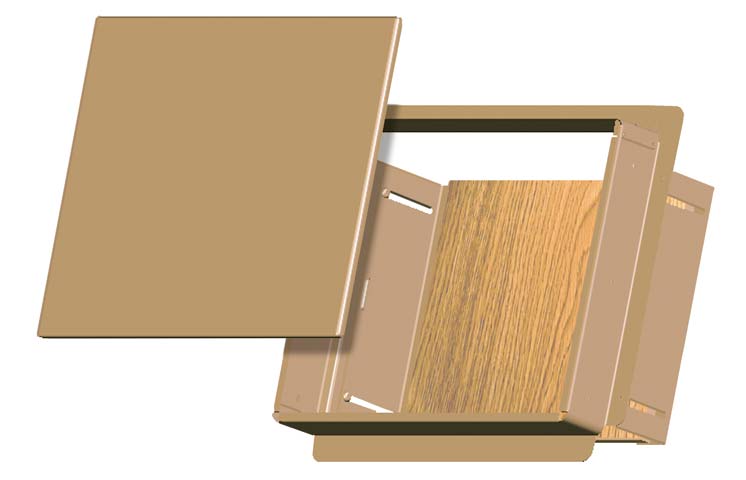

The 1100C-E box when expanded is the same size as the standard 1100C. We have made it this way to conserve storage. This enclosure is installed between 16” centered studs prior to the application of final exterior siding material. The enclosure has an open top and bottom to the inside wall and a 1/2” plywood backboard for mounting utility equipment. The fully enclosed lid  seals off outside weather and insects and is fastened with two zinc-coated phillips sheet metal screws.  You can order the lid with either “Telephone” or “TV” embossments. This enclosure is also available with an optional four position ground bar. It is Nema 3R rated, UL listed and has a powder coat desert tan finish.

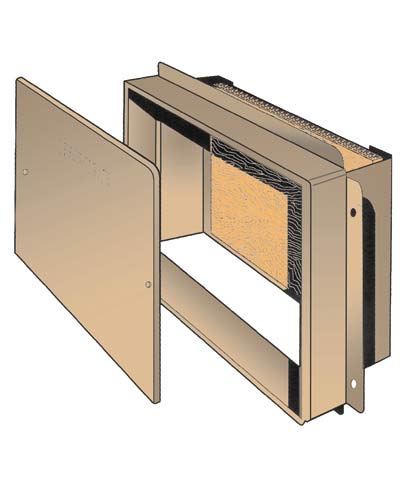

14-3/4” wide x 11-1/4” high x 5-1/2” deep

(Weight - 360 lbs. per pallet of 50)

This enclosure is installed between 16” centered studs prior to the application of final exterior siding material.  This enclosure typically houses demarcation utility elements for telephone and/or cable television. The enclosure has an open top and bottom to the inside wall and a 1/2” plywood backboard for mounting utility equipment. The fully enclosed lid  seals off outside weather and insects and is fastened with two zinc-coated phillips sheet metal screws.  You can order the lid with either “Telephone” or “TV” embossments. This enclosure is also available with an optional four position ground bar. It is Nema 3R rated, UL listed and has a powder coat desert tan finish

14-3/4" wide x 11-1/4" high x
5-1/2" deep

(Weight - 13 lbs.)

This fully enclosed box is installed between 16" center studs prior to the application of final exterior siding material. This enclosure typically houses demarcation utility elements for telephone and/or cable television. The enclosure has a hinged door that locks with a standard can wrench. It also has 3/4" plywood backboard for mounting utility equipment. It has two 1" to 2" knockouts on the top and bottom. You can order the lid with either "Telephone" or "TV" embossments. This enclosure is also available with an optional four position ground bar.This enclosure is made of 18 gauge zinc-coated steel and has a durable desert tan powder coat finish. This box is NEMA 3R rated and UL listed.

14-1/2” wide x 24” tall x 6-1/2” deep

(Weight - 22 lbs.)

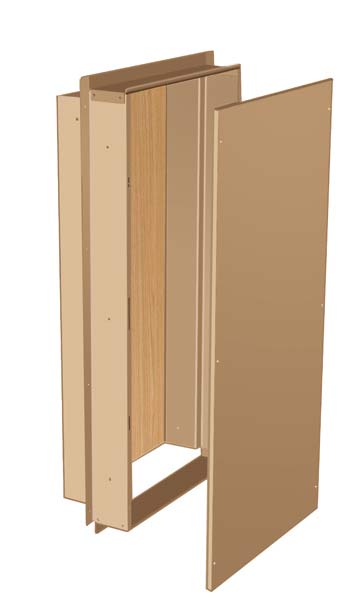

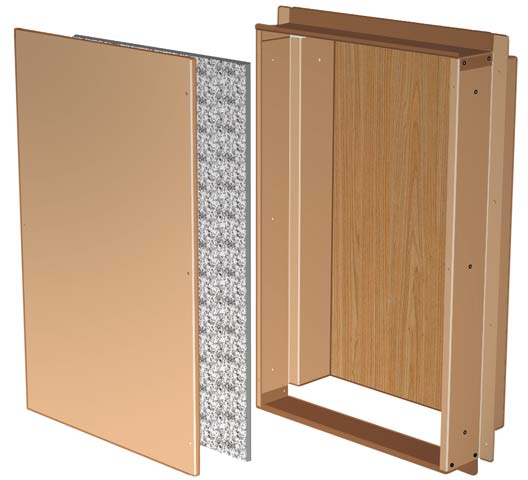

14-1/2” wide x 32” tall x 6-1/2” deep

(Weight - 21 lbs.)

This Fiber-to-the-home box is large enough to allow a standard electrical outlet for a UPS power source.  This enclosure is 18 gauge zinc-coated steel with a desert tan powder coat finish.  The lid is attached with six phillips screws and the inside box is open top and bottom to allow cable to be coiled in the wall and it includes a 1/2” plywood backboard and a four-position ground bar. This enclosure will install between 16” center studs in new construction and meets NEMA 3R rating and is UL listed.

14-1/2” wide x 32” tall x 6-1/2” deep

(Weight - 22 lbs.)

14-1/2” wide x 32” tall x 7” deep

(Weight - 22 lbs.)

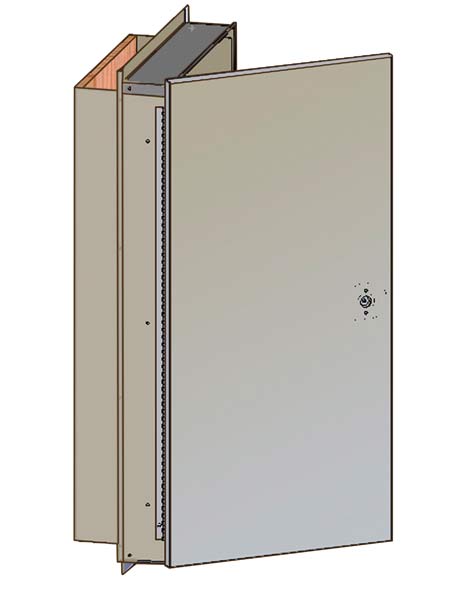

This enclosure is identical to the 14326W-UL except it has a hinged door and is 1/2” deeper. The material is zinc-coated steel with a desert tan powder coat finish.  The lid is attached with a piano hinge and has a standard hex-head latch. The inside box to the wall is open top and bottom to allow cable to be coiled in the wall space and it includes a 1/2” plywood backboard. This enclosure will install between 16” center studs in new construction and meets NEMA 3R rating and is UL listed.

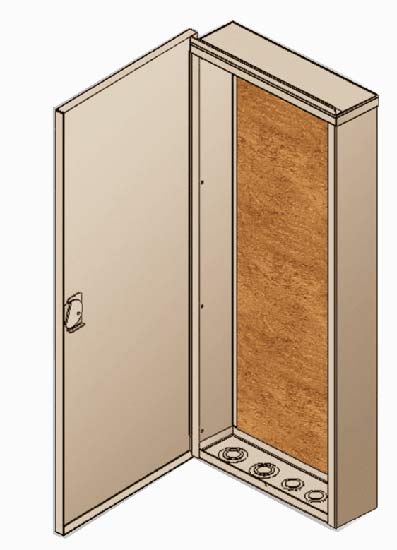

14” wide x 24” high x 4” deep

(Weight - 26 lbs.)

This surface mount cabinet can be attached to a variety of surfaces. The cabinet is fully enclosed and has a hinged door with a standard hex-head latch. It is constructed from 16 gauge zinc-coated steel with a durable tan finish. Knockouts on the bottom include three multiple 3/4” to 1-1/4” and two 3/4” to 1-3/4”. It also includes a 1/2” plywood backboard, a four-position ground bar and “Communications” embossed on the cover.

14” wide x 32” high x 4” deep

(Weight - 31 lbs.)

This surface mount cabinet can be attached to a variety of surfaces. The cabinet is fully enclosed and has a hinged door with a standard hex-head latch. It is constructed from 16 gauge zinc-coated steel with a durable tan finish. Knockouts on the bottom include three multiple 3/4” to 1-1/4” and two 3/4” to 1-3/4”. It also includes a 1/2” plywood backboard, a four-position ground bar and “Communications” embossed on the cover.

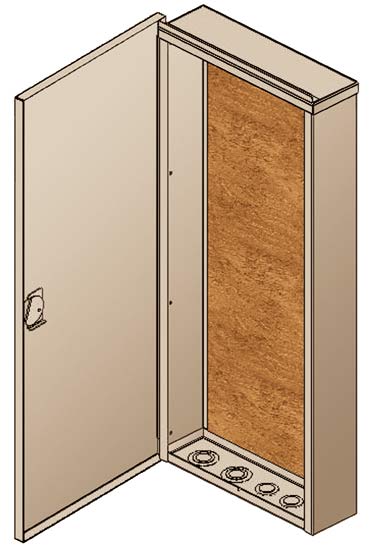

14-1/2” wide x 32” tall x 6” deep

(Weight - 33 lbs.)

This surface mount cabinet can be attached to a variety of surfaces. The cabinet is fully enclosed and has a hinged door with a standard hex-head latch. It is constructed from 16 gauge zinc-coated steel with a durable tan finish. Knockouts on the bottom include three multiple 3/4” to 1-1/4” and two 3/4” to 1-3/4”. It also includes a 1/2” plywood backboard, a four-position ground bar and “Communications” embossed on the cover.

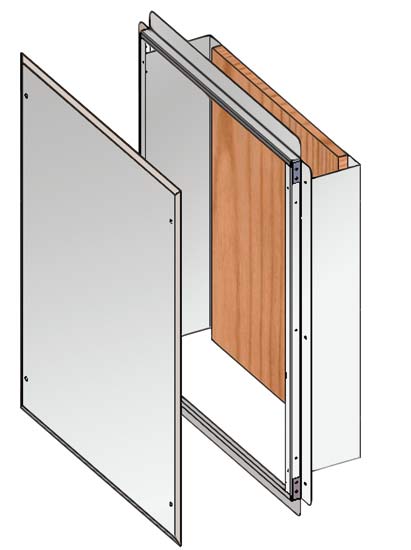

14-1/4” wide x 18” high x 4” deep

(Weight - 8 lbs.)

This is principally an interior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is usually located in the garage or laundry/utility room and is mounted prior to drywall application between 16” centered studs. It is made of 20 gauge  galvaneal steel with an off-white finish. The lid is fastened with four zinc-coated phillips head sheet metal screws. The interior is open at both the top and bottom to allow coiling of cable into the wall and it has a 1/2” plywood backboard.

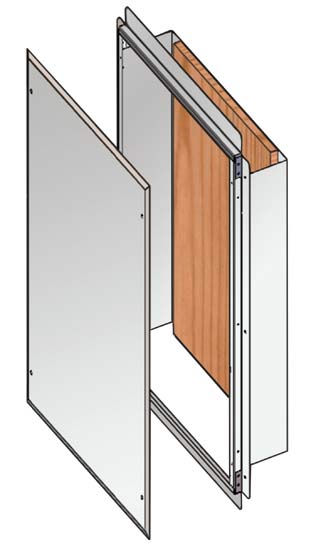

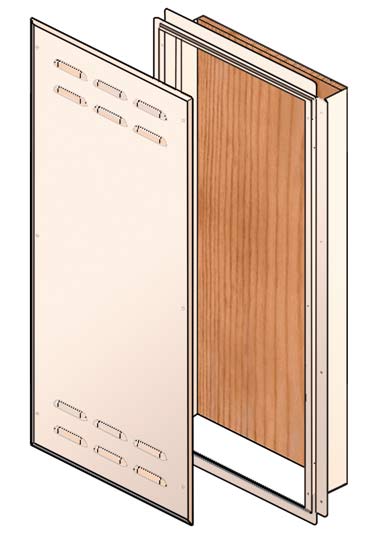

14-1/4” wide x 24” high x 4” deep

(Weight - 15 lbs.)

This is principally an interior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is usually located in the garage or laundry/utility room and is mounted prior to drywall application between 16” centered studs. It is made of 20 gauge  galvaneal steel with an off-white finish. The lid is fastened with four zinc-coated phillips head sheet metal screws. The interior is open at both the top and bottom to allow coiling of cable into the wall and it has a 1/2” plywood backboard.

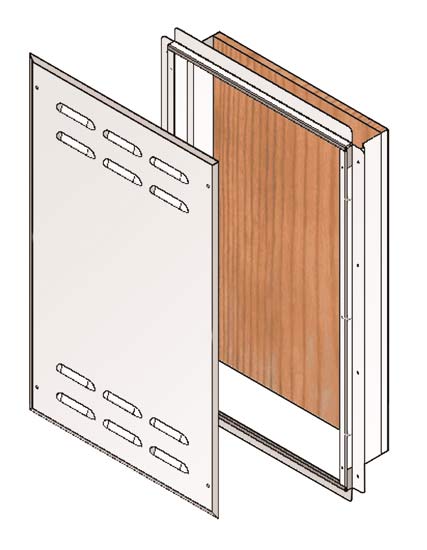

14-1/4” wide x 24” high x 4” deep

(Weight - 15 lbs.)

This is principally an interior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is usually located in the garage or laundry/utility room and is mounted prior to drywall application between 16” centered studs. It is made of 20 gauge  galvaneal steel with an off-white finish. The lid is fastened with four zinc-coated phillips head sheet metal screws. The interior is open at both the top and bottom to allow coiling of cable into the wall and it has a 1/2” plywood backboard. It has a louvered cover for ventilation.

14-1/4” wide x 32” high x 4” deep

(Weight - 15 lbs.)

14-1/4” wide x 32” high x 4” deep

(Weight - 15 lbs.)

This is an interior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is usually located in the garage or laundry/utility room and is mounted prior to drywall application between 16” centered studs. It is made of 20 gauge  galvaneal steel with an off-white finish. The lid is fastened with six zinc-coated phillips head sheet metal screws. The interior is open at both the top and bottom to allow coiling of cable into the wall. It has a louvered cover for ventilation.

14 3/4” wide x 24” high x 5-3/4” deep

(Weight - 28 lbs.)

This is a large capacity enclosure that can accommodate 25-pair protectors and modular interface telephone apparatus.  The 3/4” plywood backboard simplifies equipment mounting with two 2” knockouts positioned in the bottom of the case plate. Simply fasten the enclosure between 16” center studs prior to application of final exterior siding material. The fully enclosed hinged door keeps weather and insects from entering the structure and locks with a standard can wrench. This enclosure should be mounted 36” above final grade and can be stacked with additional units if more space  is needed. This is a 16 gauge metal enclosure with a desert tan powder coat finish. This box is NEMA 3R rated and UL listed.

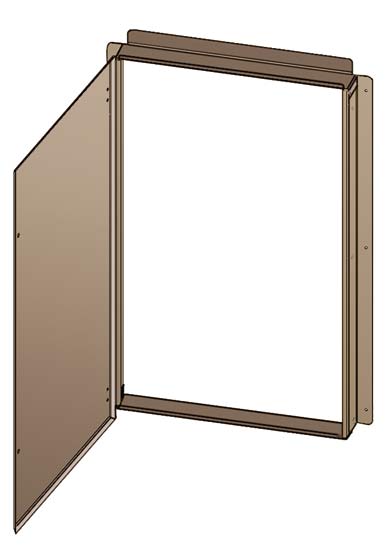

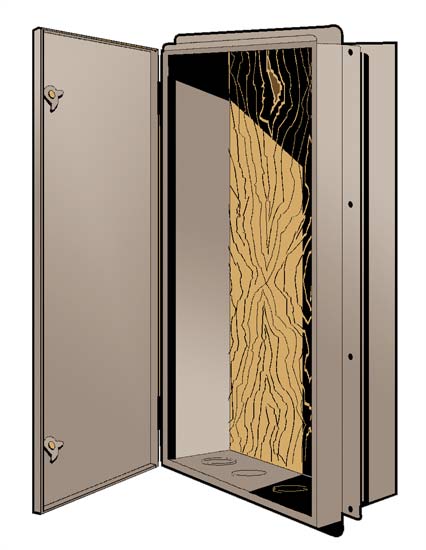

14-3/4” wide x 24” high (BN1130NB)

(Weight - 12 lbs. ea)

These are semi-recessed exterior access doors for new construction.  They have open backs and are installed with nails or screws between 16” center studs prior to application of final exterior construction finish.  They are made of 16 gauge zinc-coated steel with a desert tan powder coat finish with a hinged door that uses a standard can wrench for entry.  This is an excellent application for back-flow valves for fire sprinklers and standard fire alarm systems.

14-3/8” wide x 15” tall x 5-1/4” deep

(Weight - 13 lbs.)

This is a very versatile exterior service box that can be either semi-flush mounted during construction or added as a surface mount after construction is complete. It is ideal for communication utilities, irrigation and alarm systems when outside access is required.  It has two mutiple 1-1/2” to 2”  and three 1” bottom knockouts. On the interior we have included a 3/4” plywood backboard to facilitate equipment mounting. This 18 gauge metal box has a fully enclosed hinged door that locks with a standard can wrench tool. This box is finished with a powder coat desert tan color that can be painted to match the exterior building. This box is NEMA 3R rated and UL listed. Door labels are available for TV, Telephone or Communication.

14-1/4” wide x 25” high x 6-7/8” deep

(Weight - 32 lbs.)

This is an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 16 gauge zinc-coated steel with a desert tan powder coat finish. The hinged lid is locked with a standard can wrench. This is a fully enclosed box with three multiple 1” to 2” knockouts on the bottom. It is also NEMA 3R rated and UL listed and has a 3/4” plywood backboard. Optional key locks and hasps are available.

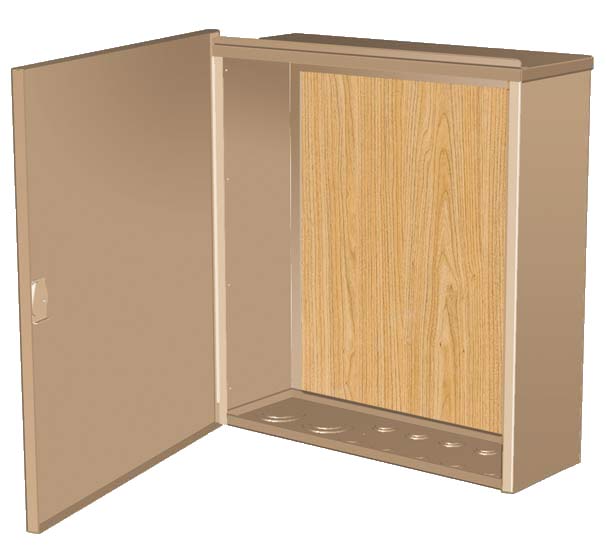

24” wide x 26” high x 8” deep

(Weight - 50 lbs.)

This enclosure is an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The hinged lid locks with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 2” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated, UL listed and includes a four-position ground bar mounted inside. Optional key locks and hasps are available.

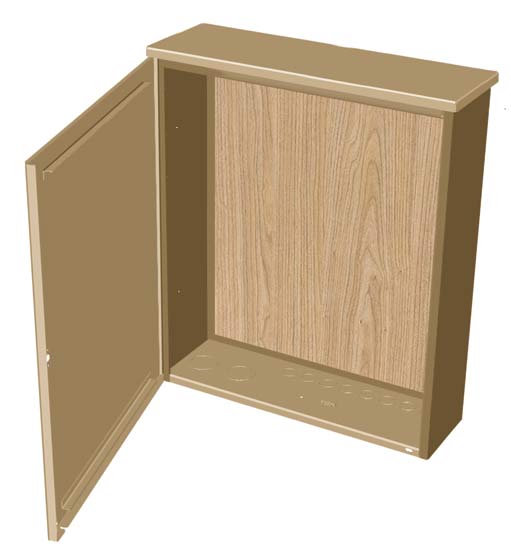

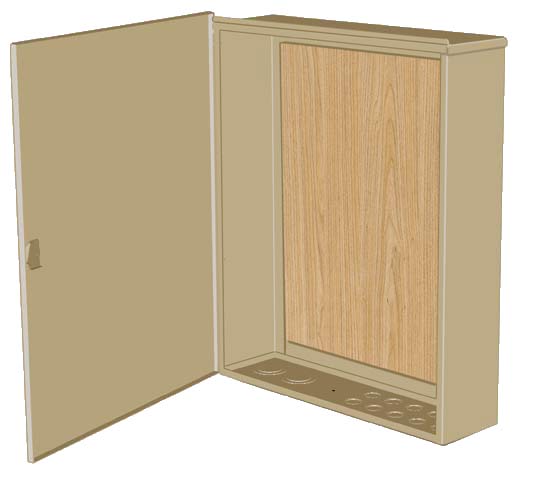

30” wide x 36” high x 8” deep

(Weight - 80 lbs.)

This is principally an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside.

30” wide x 36” high x 9” deep

(Weight - 84 lbs.)

This enclosure is an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside. Optional key locks and hasps are available.

30” wide x 36” high x 9” deep

(Weight - 84 lbs.)

This enclosure is an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside and a built in splice chamber.

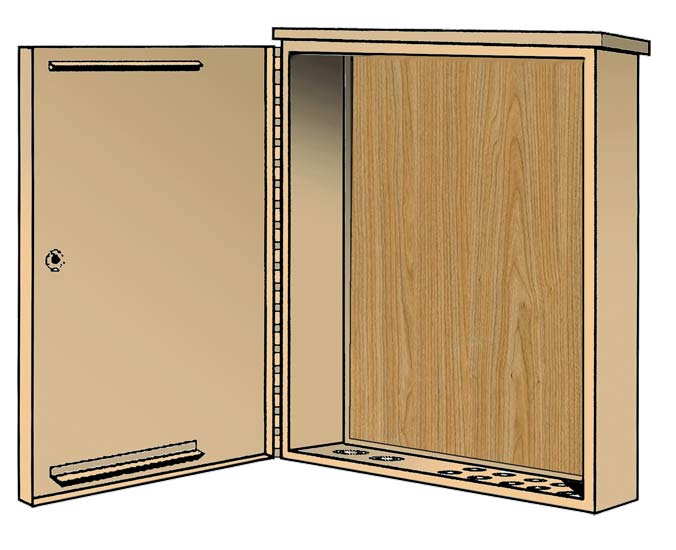

36” wide x 36” high x 8” deep

( Weight - 99 lbs.)

This is principally an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside. Optional key locks and hasps are available.

36” wide x 36” tall x 9” deep

(Weight - 101 lbs.)

This is principally an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside.

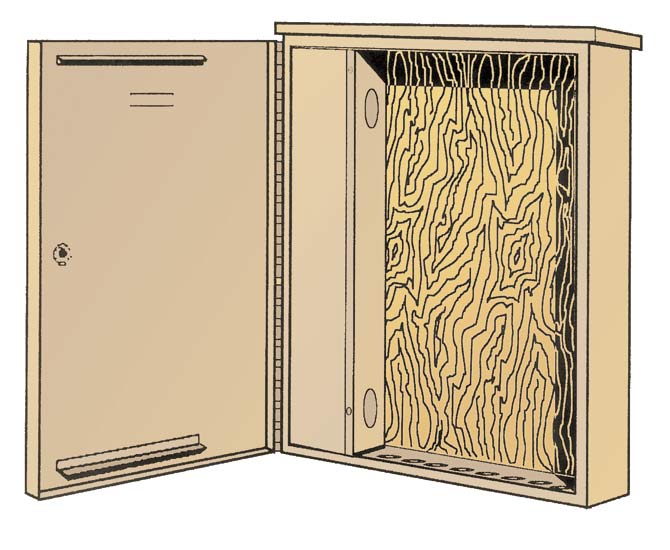

38” wide x 36” high x 9” deep

(Weight - 111 lbs.)

This exterior distribution box with splice compartment can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside.

36” wide x 36” tall x 12” deep

(Weight - 113 lbs.)

This is principally an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside.

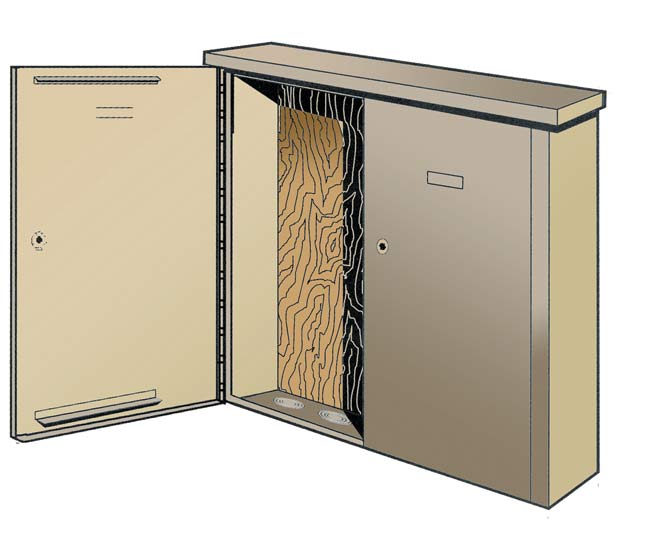

48” wide x 48” high x 9” deep

(Weight - 190 lbs.)

This is principally an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside.

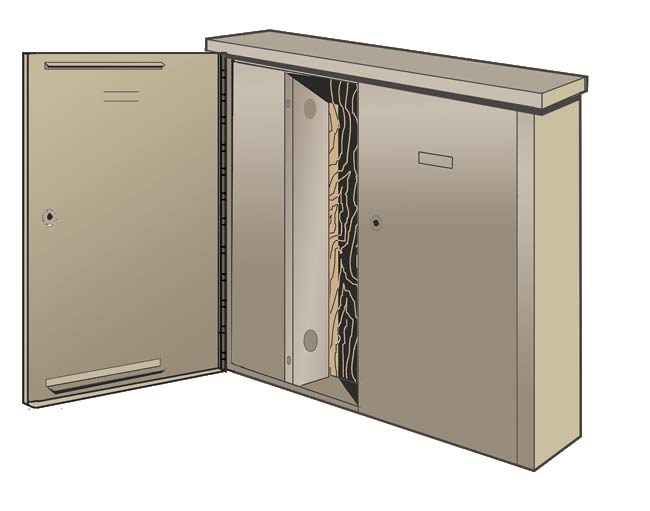

48” wide x 48” high x 9” deep

(Weight - 190 lbs.)

This is principally an exterior distribution box that can be used for communication hubs with telephone, computer, cable television and alarm system applications. This box is surface-mounted on an existing construction project or used in concrete tilt-up projects. It is made of 14 gauge  zinc-coated steel with a desert tan powder coat finish. The reinforced hinged lid is locked with a standard can wrench. This is a fully enclosed box with two multiple 1-1/2” to 3” and ten 1” to 1-1/4” knockouts on the bottom. It is also NEMA 3R rated and UL listed. It also includes a 3/4” plywood backboard and a four-position ground bar mounted inside.This enclosure includes a built in splice chamber.

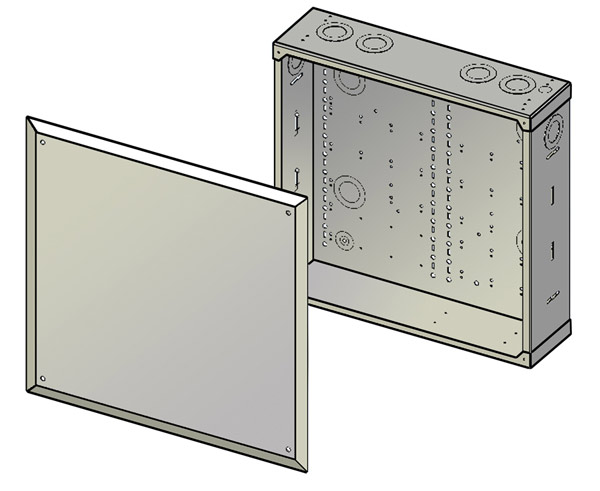

14 ¼” wide X 14” tall X 4” deep

Weight – 10 lbs.

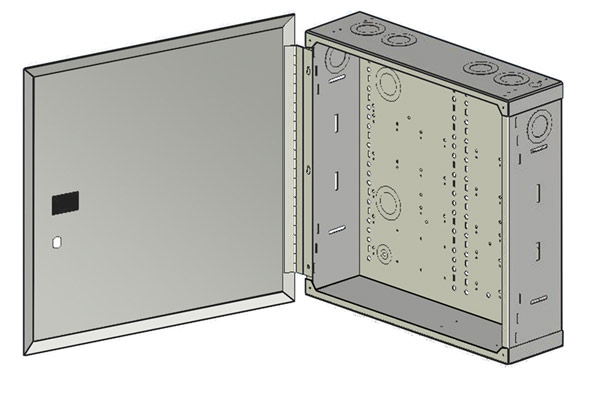

This white universal interior mount cabinet includes a screw-on door. This cabinet is designed to accept most major modules such as Leviton, OnQ, Suttle, and others. Easily mounts between standard 16” on center studs and adjusts to varying wall finish thicknesses. The cover mounts flush to the wall. Knockouts are provided on all four sides and back for 1” to 1 ½” conduits and an AC power box knockout is provided on the bottom. Included with each box are four snap-in grommets to protect wires, a cardboard overspray shield, and four mounting screws.

14 ¼” wide X 14” tall X 4” deep

Weight – 11 lbs.

This white universal mount cabinet includes a hinged door with a thumb latch. This cabinet is designed to accept most major modules such as Leviton, OnQ, Suttle, and others. Easily mounts between standard 16” on center studs and adjusts to varying wall finish thicknesses. The hinged cover mounts flush to the wall. Knockouts are provided on all four sides and back for 1” to 1 ½” conduits and an AC power box knockout is provided on the bottom. Included with each box are four snap-in grommets to protect wires, a cardboard overspray shield, and four mounting screws. An optional keyed lock is also available.

14 ¼” wide X 28” tall X 4” deep

Weight – 17 lbs.

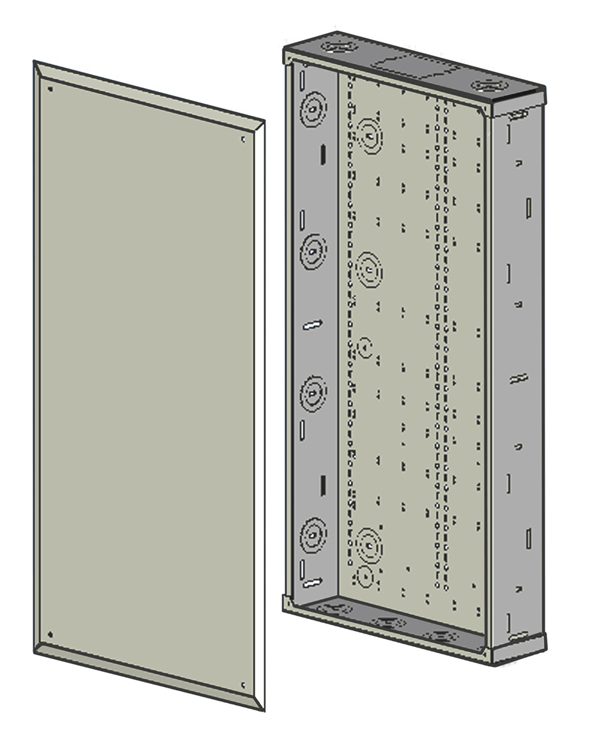

This white universal interior mount cabinet includes a screw-on door. This cabinet is designed to accept most major modules such as Leviton, OnQ, Suttle, and others. Easily mounts between standard 16” on center studs and adjusts to varying wall finish thicknesses. The cover mounts flush to the wall. Knockouts are provided on all four sides and back for 1” to 1 ½” conduits and an AC power box knockout is provided on the bottom. Included with each box are four snap-in grommets to protect wires, a cardboard overspray shield, and four mounting screws.

14 ¼” wide X 28” tall X 4” deep

Weight – 18 lbs.

This white universal mount cabinet includes a hinged door with a thumb latch. This cabinet is designed to accept most major modules such as Leviton, OnQ, Suttle, and others. Easily mounts between standard 16” on center studs and adjusts to varying wall finish thicknesses. The hinged cover mounts flush to the wall. Knockouts are provided on all four sides and back for 1” to 1 ½” conduits and an AC power box knockout is provided on the bottom. Included with each box are four snap-in grommets to protect wires, a cardboard overspray shield, and four mounting screws. An optional keyed lock is also available.

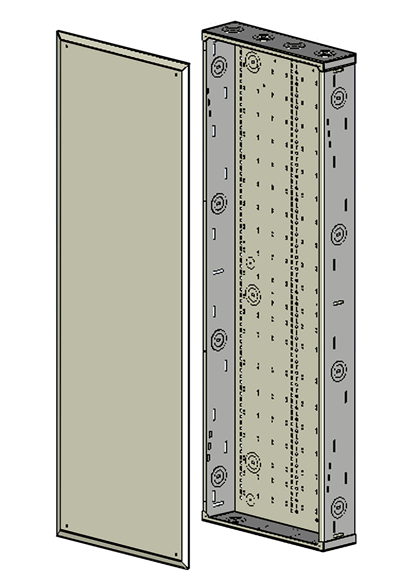

14-1/4” wide X 42” tall X 4” deep

Weight – 25 lbs.

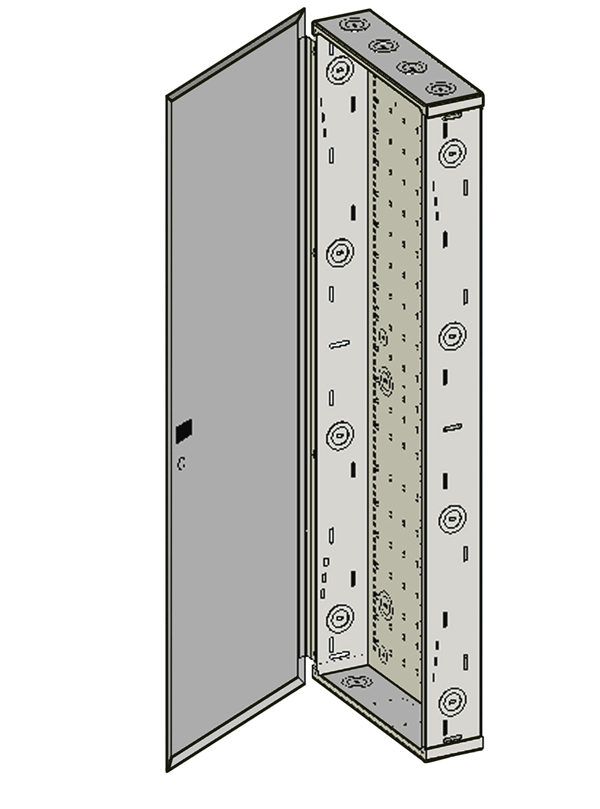

This white universal mount cabinet accepts modules from a variety of manufactures such as Leviton, OnQ, Suttle, and others. This low cost enclosure mounts between standard 16” on center studs and adjusts for varying wall finish thicknesses. The cover mounts flush to the wall with screws. The enclosure Includes knockouts on all four sides and back for 1” to 1 ½” conduits and an AC power box knockout on the bottom. We also include a cardboard overspray shield, four snap-in pulling grommets, and mounting screws.

14 ¼” wide X 28” tall X 4” deep

Weight – 26 lbs.

This white universal mount cabinet includes a hinged door with a thumb latch. This cabinet is designed to accept most major modules such as Leviton, OnQ, Suttle, and others. Easily mounts between standard 16” on center studs and adjusts to varying wall finish thicknesses. The hinged cover mounts flush to the wall. Knockouts are provided on all four sides and back for 1” to 1 ½” conduits and an AC power box knockout is provided on the bottom. Included with each box are four snap-in grommets to protect wires, a cardboard overspray shield, and four mounting screws. An optional keyed lock is also available.

The UP-70 is designed to be a durable and inexpensive product for use in low-voltage wiring projects.  This simple product is the ideal method for pre-wiring communication systems in new construction projects.  It mounts to the side of the stud and because of the special tab-guide design, virtually eliminates all drywall distortion.
