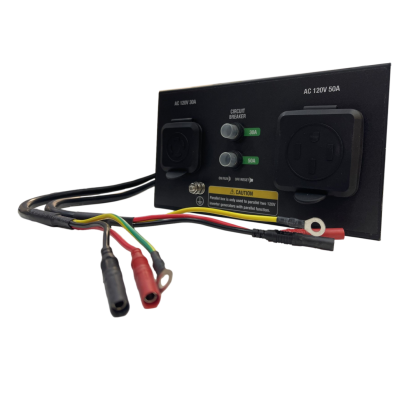

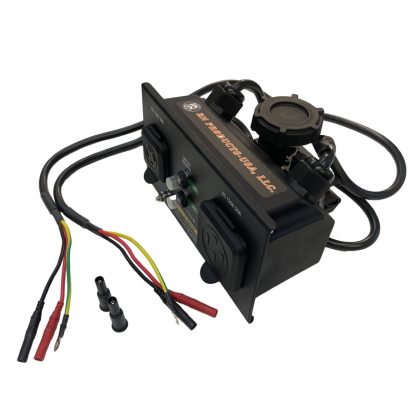

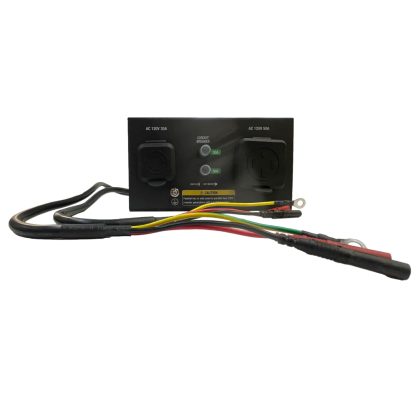

BNGPB Parallel Kit
PRODUCT SUMMARY
Double your Power! Parallel Inverter Solution from BN Products-USA™
The BNG2300iSAC is a 2800 Watt (Max) / 2300 Watt (Rated), gasoline-powered inverter generator that is a great addition to our line of BN Products USA™ generators. The compact design and enclosed case make this unit a convenient and lightweight power plant, that quietly produces stable power for your job site or recreational needs!
- Seamlessly integrates two identical BNG Series parallel-ready inverters, with a hand-tightened clamp for easy attachment
- Compatible with BNG2300iSAC - BNG2800iE - BNG3800iAEFIC Inverter Generators
- No Tools Necessary!
- Parallel two lightweight and ultra-quiet inverters to get the power of a larger unit when you need it
- 120V 50A (14-50R) outlet and a 120V 30A locking outlet (L5-30R) with separate 50-amp and 30-amp circuit breakers to prevent overloads
PRODUCT LINKS
Close
BUY ONLINE | Available Now from these Distributors
| Product ID | BNGPB 30A/50A Parallel Kit |
| Generator Model Compatibility | BNG2300iSAC |
| BNG2800iE (with cabling adapters, included in kit) | |
| BNG3800iAEFIC | |
| Circuits | 120V AC 30A 60Hz (dedicated Circuit Breaker) |
| 120V AC 50A 60Hz (dedicated Circuit Breaker) | |
| Mounting Clamp | Yes |
| Wattage | Supports Two 2300W - 3800W Inverter Generators |
| Outlets | NEMA L5-30R 120V 30A |
| NEMA 14-50R 120V 50A |
