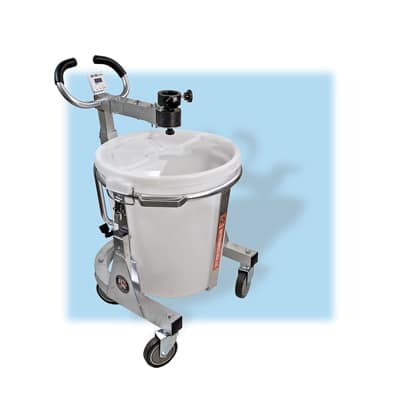

BNMS-100 Portable Mixing Station

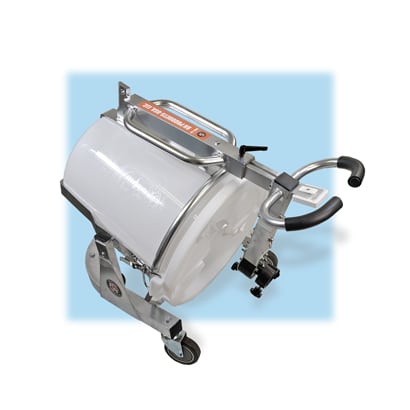

BNMS-100 (Tilted)
Swivel Mount
Release Lever/Locking Caster
- BNMS-100 (Tilted) Click here
- Swivel Mount Click here
- Release Lever/Locking Caster Click here
Summary of Tool
- The BNMS-100 Mixing Station. A portable mixing bucket and transportation system.
- Mix up to 220 lbs. of material at a time.
- Our mixing station includes a dust/splash reduction cover for safer use and less mess.
- Includes a port to connect to a HEPA vacuum and allowing for dust suppression during mixing. The BNMS-100 has an easy tilt operation as well as the ability to remove the mixer with a quick release pin on the arm, and features a swivel mount and is suitable for most mixers.
- NOTE: This station is designed for use with the BNR6400 Paddle Mixer (Legacy Product); and is not designed for universal compatibility with other power mixers.
PRODUCT LINKS
Download Assembly Instructions: BNMS-100 Mixing Stand Assembly
| Height with handle attached min. (Operating) | 35" (89cm) |
| Height with handle detached (Transportation) | 27 1/2" (70cm) |
| Overall Width | 22" (55.9cm) |
| Overall Length | 28" (71.1cm) |
| Length of Handle Adjustment | 11.5" (29.2cm) |
| Weight | 42 lbs (19 kgs) |
| Volume of Bucket | 18 GAL (70L) |
| Volume of mix | Up to 220 lbs (100kg) of material at a time |
| Accessories | Extra Buckets and Lids |
