C-4090U 1/2″x3-9/16″ Hammer Drive Strike Anchor (Box of 30)

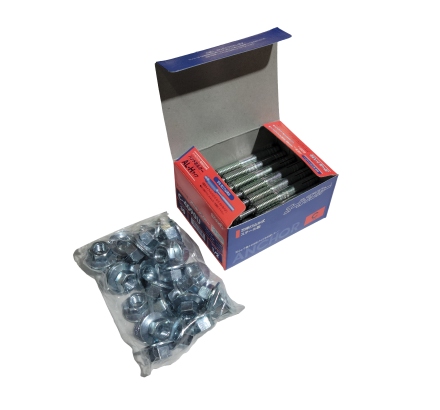

Box of 30
Easy to install and no special tools are required for this concrete anchor! Just hammer the pin in and the anchor tensions itself automatically. Box of 30.
1/2" x 2-3/4" C-Type Hammer Drive Anchor Save time, no special tools required Depth of hole is not critical, no depth gauge required No torque wrench is required to set, simply drive pin flush with top for positive anchor setting High strength steel with greater leg expansion ensures a firmer gripping contact than an anchor made from other metals such as lead Other anchor styles rise when tightening the nut, requiring a longer anchor to provide the same load value. Easy to inspect Center pin is designed not to break
C-4070U | This hammer drive anchor from Sanko features a hardened center pin that is driven through the center to expand the anchor. It includes a nut and washer that can be set to various depths. It is easy to install because the depth of the hole is not critical and no special tool is required. Just hammer the pin in and the anchor tensions itself automatically. The anchor is set when the center pin is flush with the top of the bolt making it easy to inspect.

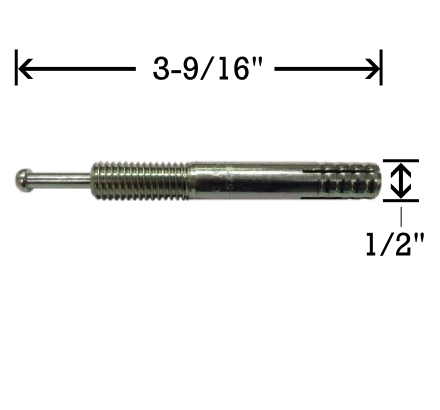

|Outside Diameter x Length||1/2" x 3-9/16"|
|Drill Bit Diameter||1/2"|
|Tension Load||4,255 lbs|
|Shear Load||5,556 lbs|
|Box Quantity||30 pcs|
|Carton Quantity||180 pcs|
