BNHYBR-29 Hickey Bar

PRODUCT SUMMARY

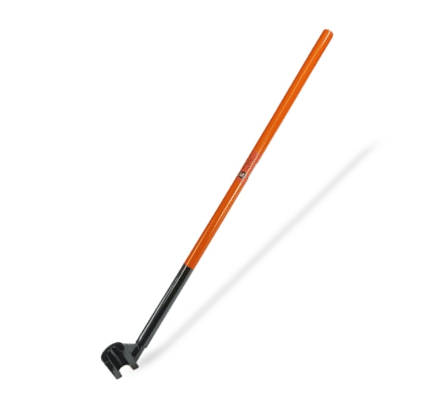

BNHYBR-29 #9 Rebar Hickey Bar

The BNHYBR-29 #9 rebar hickey bar from BN Products-USA is a heavy-duty manual rebar bending tool designed for bending and shaping large-diameter reinforcing steel bars in concrete construction applications. Featuring an angled hickey bar design and an extended 63-1/4-inch steel handle, this tool provides leverage for manually bending up to #9 (1-1/8-inch, 29 mm) Grade 60 rebar.

Constructed from heavy-duty industrial steel, the BNHYBR-29 is designed for contractors and construction professionals who need a manual solution for bending reinforcing steel on the jobsite.

Features and Benefits

• #9 Rebar Bending Capacity: Manually bends up to #9 (1-1/8-inch, 29 mm) Grade 60 reinforcing steel.
• Angled Hickey Bar Design: Designed for manual bending and shaping of reinforcing steel bars.
• 63-1/4-Inch Handle: Extended handle length provides increased leverage for demanding rebar bending applications.
• Heavy-Duty Industrial Steel: Durable steel construction for use in concrete construction environments.
• 1.5-Inch Diameter Handle: Steel handle featuring a 0.15-inch inner wall thickness.
• 16 lb. Tool Weight: Built for heavy-duty rebar bending while remaining manually operated.
• Manual Operation: Designed for bending rebar without electric or hydraulic power.

Applications

The BNHYBR-29 #9 rebar hickey bar is designed for reinforcing steel installation and concrete construction applications requiring manual bending of larger-diameter rebar.

Its extended steel handle provides additional leverage for shaping and positioning reinforcing bars during field installation and construction work.

BNHYBR-29 Specifications

• Product Number: BNHYBR-29
• Tool Type: Angled Manual Rebar Hickey Bar
• Maximum Bending Capacity: #9 Rebar (1-1/8-inch, 29 mm)
• Rebar Grade: Grade 60
• Handle Length: 63-1/4 inches
• Handle Diameter: 1.5 inches
• Handle Wall Thickness: 0.15 inches
• Tool Weight: 16 lbs.
• Construction: Heavy-Duty Industrial Steel
• Operation: Manual

Product Literature

For additional product information and technical specifications, refer to the BNHYBR-29 Hickey Bar brochure below.

• Brochure/Info
