BNR6169 Paddle Mixer

PRODUCT SUMMARY

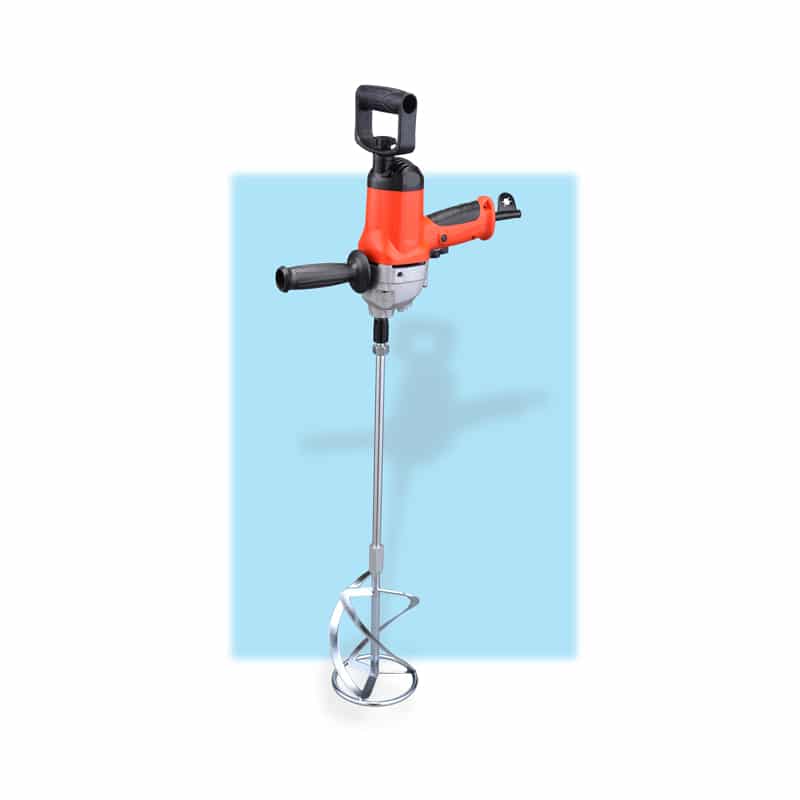

BNR6169 Paddle Mixer – 1050W Handheld Power Mixer

The BNR6169 Paddle Mixer from BN Products-USA™ is a 1050-watt handheld power mixer designed for construction material mixing applications. Featuring variable speed control, forward and reverse operation, and adjustable handles, this heavy-duty mixing tool provides flexibility and control for a variety of mixing requirements.

Product Status: Discontinued by Manufacturer

The BNR6169 Paddle Mixer is no longer manufactured. Product information, specifications, and documentation are provided for reference and for customers who currently own this model.

BNR6169 Paddle Mixer Features & Benefits

• 1050-Watt Motor: Provides power for construction material mixing applications.
• Forward/Reverse Switch: Allows users to change paddle rotation direction for different mixing requirements.
• Variable Speed Trigger: Offers adjustable mixing speed for improved control during operation.
• Lock-On Button: Enables continuous operation without constantly holding the trigger.
• BNR003-120 Mixing Paddle: Includes the BNR003-120 mixing paddle in the original product configuration.
• Standard M14 Paddle Connection: Accommodates compatible mixing paddles with an M14 connection.
• 1/2-Inch Shank Capacity: Supports mixing paddles with compatible 1/2-inch shanks.
• 360-Degree Rotating Rear D-Handle: Adjustable handle positioning for greater flexibility during operation.
• Three-Position Removable Side Handle: Provides additional handling and positioning options.
• Mixing Capacity: Designed for mixing 2 bags or approximately 20 gallons of material, subject to material characteristics.
• Material Capacity: Rated for up to 80 pounds of liquid material.

Variable Speed and Forward/Reverse Mixing

The BNR6169 Paddle Mixer features a variable speed trigger that allows operators to control mixing speed according to the material and application.

Its forward and reverse switch allows the paddle’s direction of rotation to be changed. A lock-on button provides continuous operation when required.

These features offer flexibility when mixing different construction materials and help operators maintain control throughout the mixing process.

Adjustable Handles for Improved Control

Designed with operator flexibility in mind, the BNR6169 handheld construction mixer includes a rear D-handle that rotates 360 degrees and a removable side handle with three mounting positions.

These adjustable handle configurations allow users to position the mixer according to their working conditions and mixing requirements.

BNR6169 Paddle Mixer Specifications

• Model: BNR6169
• Product Type: Handheld Paddle Mixer
• Motor Power: 1050 Watts
• Current: 9 Amps
• Horsepower: 1.4 HP (manufacturer-listed)
• Voltage: 120V
• Frequency: 60Hz
• Gears: 1
• Speed Control: Variable Speed Trigger
• Rotation: Forward and Reverse
• Paddle Connection: Standard M14 or Compatible 1/2-Inch Shank
• Included Paddle: BNR003-120
• Rear Handle: 360-Degree Rotating D-Handle
• Side Handle: Three-Position Removable
• Mixing Capacity: 2 Bags / 20 Gallons
• Liquid Material Capacity: Up to 80 lbs.
• Product Status: Discontinued by Manufacturer

BNR6169 Product Manual & Documentation

Although the BNR6169 Paddle Mixer has been discontinued by the manufacturer, product documentation remains useful for existing owners seeking operating instructions, specifications, and maintenance information.

For additional technical details, refer to the original product manual.

For a product manual: CLICK HERE
