BNR6502 Dual Power Mixer
Alternate View

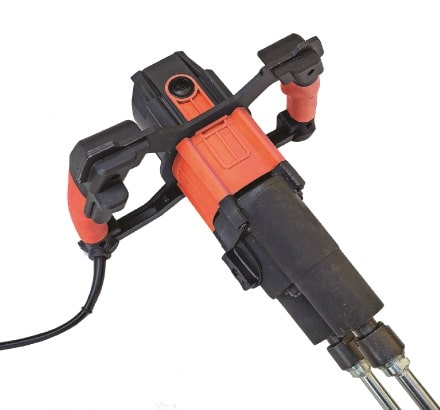

Handle
Handle (back)
Side/Top View
Callouts
PRODUCT SUMMARY

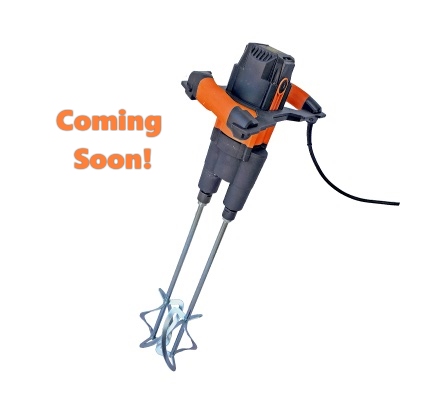

BNR6502 Power Mixer from BN Products-USA™
The BNR6502 Power Mixer is an 1800-watt, dual-paddle mixer designed for fast, consistent mixing of materials ranging from low-viscosity paints to high-viscosity mortars. Its high-torque motor, two-speed gearbox and counter-rotating paddles provide powerful, efficient mixing for demanding applications.
- 1800-Watt, 2-speed high torque Power Mixer
- High performance with 2 paddles working clockwise and counter clockwise
- Convenient quick-change chucks
- Soft start function and constant speed control
- Replacement Paddle Set: BNR013-120
PRODUCT LINKS
- Printable Operator Manual: CLICK HERE
- Printable Parts Guide: CLICK HERE
- Printable Literature Sheet: CLICK HERE
Close
BUY ONLINE | Available Now from these Distributors
| Replacement Paddle Model Number | BNR013-120 |
| Item No. | BNR6502 |
| Rated Voltage | 120V / 60 Hz |
| Rate Power | 1800 W (15A) / 2.4 HP |
| Rated No-Lead Speed / Gear 1 - Gear 2 | 440RPM - 780 RPM |
| Mixing Paddle Size (2) | 4.75" / 120mm x 23.25" 590mm |
| Sound Level | 102.7 dB(A) ± 3 dB(A) |
| Vibration | 5.7 m/s^2 |
| Variable Speed | YES |
| Speed Control Lock | YES |
| Power Source | Corded (12' cord) |
| Paddle Connection | M13 |
| Recommended Material Capacity | 24 gal. (92 L) |
| Paddle Diameter | 5.5" (140mm) |
| Weight (Asssembled, with Paddles) | 18.5 lbs. (8.4 kg) |
| Unit Dimensions (Assembled) | 13.75" x 8" x 36" (35 x 20 x 91.5 cm) |
| Package Weight (Shipping) | 21 lbs. (9.5 kg) |
| Package Dimensions (Shipping) | 24" x 14" x 10" (61 x 35.5 x 25.4 cm) |
