DBC-25H Bender Cutter Combination Kit
PRODUCT SUMMARY
-

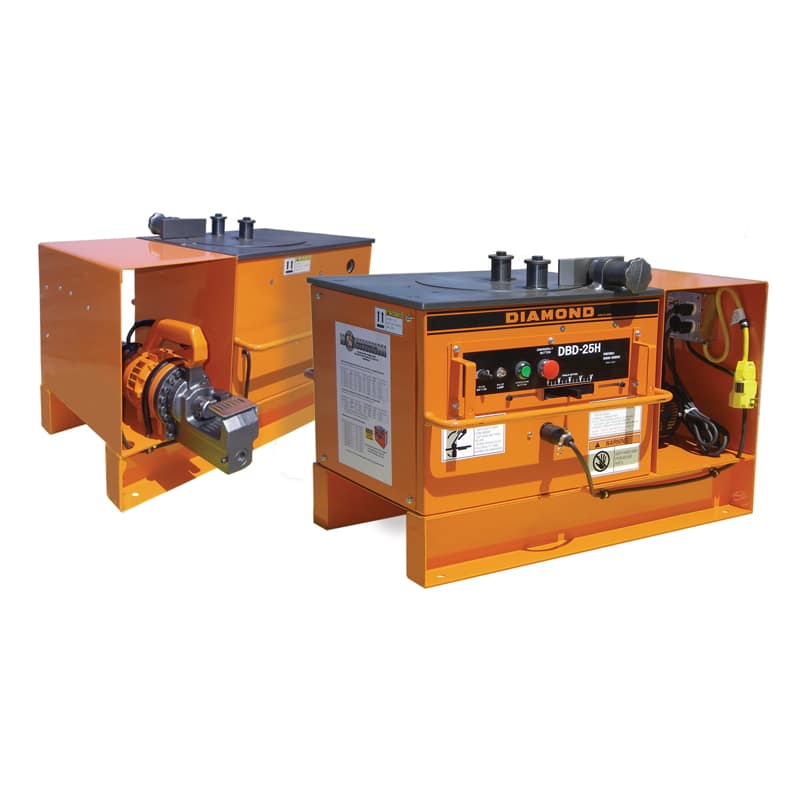

DBC-25H Rebar Bender Cutter Combination Kit
The DBC-25H rebar bender cutter combination from BN Products-USA brings together the DC-25X rebar cutter and DBD-25H rebar bender in one heavy-duty housing. Designed for reinforcing steel fabrication, this combination kit allows operators to switch between cutting and bending operations while working with a single equipment setup.
The DBC-25H combines the functionality of two rebar fabrication tools for use in construction environments and reinforcing steel preparation. Its removable cutting unit offers additional flexibility for portable or stationary applications.
Features and Benefits
- Combination Rebar Bender and Cutter: Integrates the DC-25X rebar cutter with the DBD-25H rebar bender in one heavy-duty housing.
- Removable Rebar Cutter: The DC-25X cutter can be removed from the combination unit for portable use.
- Stationary Cutting Option: The cutter can be secured in a stationary position using U-bolts.
- Toggle Switch Operation: A toggle switch allows operators to change between rebar bending and cutting functions.
- Hands-Free Operation: Both cutting and bending functions can be operated using the included foot pedal control switch.
- Fully Assembled Unit: The DBC-25H combination kit ships fully assembled.
- Convenient Storage: Includes two steel cases for storing the bending rollers.
- Heavy-Duty Construction: Built for reinforcing steel cutting and bending applications.
Rebar Cutting and Bending Applications
The DBC-25H rebar bender cutter combination provides a versatile solution for reinforcing steel preparation. Its combined design supports a variety of fabrication tasks, including:
- Construction site rebar preparation
- Concrete reinforcement fabrication
- Structural reinforcing steel work
- Rebar cutting and bending operations
- Portable rebar cutting applications
- Stationary fabrication and shop operations
The removable DC-25X cutter allows operators to perform cutting tasks separately when needed. For stationary operation, the cutter can be secured with U-bolts and used with the included foot pedal switch.
DBC-25H Product Information
- Model: DBC-25H
- Product Type: Rebar Bender Cutter Combination Kit
- Rebar Bender: DBD-25H
- Rebar Cutter: DC-25X
- Configuration: Combination unit with removable cutter
- Operation: Toggle switch and foot pedal control
- Cutter Mounting: Portable or stationary with U-bolts
- Assembly: Ships fully assembled
Included Accessories
The DBC-25H rebar bender cutter combination kit includes:
- DC-25X rebar cutter
- DBD-25H rebar bender
- Heavy-duty combination housing
- Nine bending rollers
- Two steel storage cases for bending rollers
- Foot pedal control switch
- One-year parts and labor warranty
Product Downloads
Additional operating instructions, maintenance information, and technical resources are available in the following product documents:
BUY ONLINE | Available Now from these Distributors
| Skid Mounted with DC-25X Rebar Cutter/ | |
| DBD-25H Rebar Bender | |
| Rebar Capacity | Grade 60 Up to #8 (1") rebar |
| Cutting Speed | 3 seconds |
| Bending Speed | 180 degree bend in 9 seconds |
| Power Supply | Electric motor 115V, 50/60 Hz –12 amp Cutter, 15 amp |
| Weight (kg) | 321 lbs. Total Weight, 49.6 lbs. Cutter, 210 lbs. Bender |
| Dimensions (mm) | 32.75" L x 28" W x 22.50" H including lifting handles |
| ACI 318-05 | The bender mounted on stand is compliant with all ACI 318-05 specifications |
