Power Mixer Accessories

PRODUCT SUMMARY

Power Mixer Accessories & Mixing Paddles

BN Products-USA™ offers power mixer accessories and mixing paddles for concrete, mortar, plaster, grout, adhesives, coatings and other construction materials. Choose from multiple paddle sizes and designs engineered for different material viscosities, mixing directions and BN power mixer models. Use the compatibility information below to select the correct mixing paddle for your application.

MIXER PADDLES

Mixer Paddles are available in 120, 140, 160 mm diameters where indicated by part number, except where otherwise noted.

Download PDF  |  BN Products-USA™ Mixer Paddle Compatibility Chart

• BNR001-120  |  BNR001-140  |  BNR001-160 - Designed for plasters, adhesive mortars, mortars, tile adhesives and fillers, best for sticky and viscous materials; Material Flow Bottom to Top; Connection M14 x 2 male threads.  Length = 60 cm (24")
• BNR002-57 - Designed for paints, lacquers, thin coatings, and ready-mix plaster; Material Flow Top to Bottom;  Diameter is 57 mm (2-1/4").  Designed for BNR6169 mixer or 5/16" Drill chuck
• BNR003-120  |  BNR003-140  |  BNR003-160 - Designed for concrete, mortars, plasters, heat-insulating plasters, and epoxy resin with sand, best for heavy and high viscosity materials; Material Flow Top to Bottom; Connection M14 x 2 male threads. Length = 60 cm (24")
• BNR004-120  |  BNR004-140 - Designed for thinset, tile adhesive, grout, adhesive mortars, ready-mix mortars, pointing mortars, and fillers, best for small volumes on high speed mixers; Material Flow Bottom to Top; Connection M14 x 2 male threads. Length = 60 cm (24")
• BNR005-120 - Designed for plasters, adhesive mortars, tile adhesive and fillers, best for sticky and viscous materials.; Material Flow Bottom to Top; Connection M14 x 2 male threads. Length = 60 cm (24")
• BNR008-120K - Designed for concrete, cement, mortars, and grouts with aggregate less than 3/8" diameter. Also for gypsum lime plaster, fibrated aluminum roof coatings and paints; Not for highly viscous materials. Sold in pairs for the double mixer. Material Flow Top to Bottom; A 13mm Connection is designed for BNR6402K mixer.
• BNR009-120  |  BNR009-140 - Designed for fillers, bitumen coatings, joint cement, epoxy-resin compounds, and grouting compounds, best for prevention of lump formation and lessens adding air into the mixture; Material Flow Parallel; Connection M14 x 2 male threads.  Length = 60 cm (24")
• BNR010-120  |  BNR010-140 - Designed for gypsum-lime plaster, fibrated aluminum roof coatings, and paints. This paddle can be disassembled in two pieces and fit into a carrying case; Material Flow Top to Bottom; Connection M14 x 2 male threads. Assembled Length = 60 cm (24")
• BNR012-160 -  Designed for Concrete, Thermal insulating plasters, Epoxy Resin with sand; Material Flow Bottom to Top; Connection M14 x 2 male threads.  Length = 60 cm (24")  Standard Replacement Paddle for BNR6500 Power Mixer
• BNR013-120 - Designed for Concrete, Cement, Grouts (aggregate < 3/8"); not for high-viscosity materials; Material Flow Top to Bottom; Connection 13 mm or ½” Hex Shank.  Length = 60 cm (24")  Sold in Pairs (L/R) as standard replacement for BNR6502 Dual Mixer

MIXING STAND REPLACEMENT PARTS

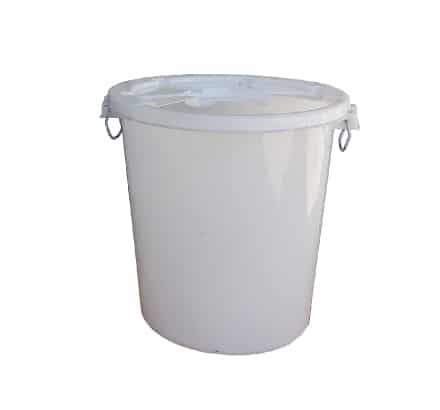

• BNMSB-SB - This is a replacement bucket and lid (22 Gallon capacity) for the BNMS-100B Mixing Stand and BNMS-6500 Mixing Station
