DBC-3225 & 3232 Bender/Cutters


These are essential combination rebar bender and cutter units. They simply combine the very popular DBD-32X bender with the DC-25X or DC-32WH rebar cutter both together on a stationary stand. The main advantage to owning this versatile combination unit is that the rebar cutter can be easily removed and used in any portable application or locked into a stationary position and then operated by a standard foot pedal switch. The other advantage is production; the bender table is at the ideal working height and the DBD-32X bends rebar from 0 -180 degrees. The BCSE-32X combination stand joins the bender & cutter both together.

~~~

                                                      DBC-3225                                    DBC-3232
Max. Cutting                              #8 or 1 ” Grade 60                         #10 or 1-1/4″ Grade 60
Max. Bending                            #9 or 1-1/8″ Grade 60                  #9 or 1-1/8″ Grade 60
Cutter Power                              115 Volt 50/60 Hz -12 amps       115 Volt 50/60 Hz -18 amps
Bender Power                            115 Volt 50/60 Hz -12 amps       115 Volt 50/60 Hz -12 amps
Total Weight (kg)                     482 lbs. (219 kg)                            511 lbs. (232 kg)
Dimensions (mm) LxWxH     23″ (590 mm) x 27″ (686 mm) x 37.25 (946 mm)

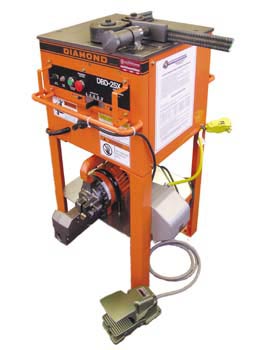

DBC-2025 & 2525 Bender/Cutters


These are essential combination rebar bender and cutter units. They simply combine the very popular DBD-25X bender with the DC-20WH or DC-25X rebar cutter both together on a stationary stand. The main advantage to owning this versatile combination unit is that the rebar cutter can be simply removed and used in any portable application or locked into a stationary position and then operated by a standard foot pedal switch. The other advantage is production; the bender table is at the ideal working height and the DBD-25X bends rebar from 0 -180 degrees. The BCSE-25X combination stand joins the bender & cutter both together.

~~~

                                           DBC-2520                                  DBC-2525
Max. Cutting                   #6 or ¾” Grade 60                      #8 or 1″ Grade 60
Max. Bending                 #7 or 7/8″ Grade 60                    #7 or 7/8″ Grade 60
Cutter Power                   115 Volt 50/60 Hz -10 amps      115 Volt 50/60 Hz -12 amps
Bender Power                 115 Volt 50/60 Hz -12 amps      115 Volt 50/60 Hz -12 amps
Total Weight (kg)          250 lbs. (113.5 kg)                        274 lbs. (124.5 kg)
Dimensions LxWxH     19.25″ (490 mm) x 24.75″ (629 mm) x 37.25″ (946 mm)




DBC-25H Bender/Cutter


The DC-25X rebar cutter can be removed and used in a portable application or secured in the stationary position with U-bolts and operated hands-free by the convenient foot pedal switch. This is a combination of the very popular DC-25X rebar cutter and our new DBD-25H rebar bender together on a heavy-duty powder-coated skidded housing. The bender meets all ACI 318-05 specifications. A toggle switch allows you to go from bending to cutting and both are operated hands-free with a foot pedal. The GFI plug is a standard safety feature. This combination unit is easy to maintain and is backed with a one-year parts and labor warranty. The unit is shipped fully assembled and includes two steel cases with nine bending rollers and a #1BR5130 foot pedal control switch

~~~
• Skid Mounted with DC-25X Rebar Cutter / DBD-25H Rebar Bender
Rebar Capacity            Grade 60 Up to #8 (1″) rebar
Cutting Speed              3 seconds
Bending Speed            180 degree bend in 9 seconds
Power Supply              Electric motor 115V, 50/60 Hz –12 amp Cutter, 15 amp
Weight (kg)                  321 lbs. Total Weight, 49.6 lbs. Cutter, 210 lbs. Bender
Dimensions (mm)      32.75″ L x 28″ W x 22.50″ H including lifting handles
~
~
…..
• • • Buy This Product Online Now • • •
(Just click one of our dealers below)





DBC-20X Bender/Cutter



~~~
The DBC-20X combination bender and cutter is rated for 3/4” grade 60 rebar. This ultimate combination unit combines the very popular DC-20WH rebar cutter and the DBD-20X rebar bender together on a heavy-duty powder-coated skidded housing. The bender and cutter are simply plugged into the weather-protective electrical outlets, no hard wiring. The DC-20WH cutter can be removed and used in a portable application or secured in the stationary position with U-bolts and operated hands-free by a standard foot pedal switch. A toggle switch allows you to go from bending to cutting, the GFI plug is a standard safety feature. This unit is shipped fully assembled and includes a steel case with six bending rollers and a foot pedal control switch
~~~
• Skid Mounted DC-20WH Rebar Cutter / DBD-20X Rebar Bender
Rebar Capacity            Grade 60 Up to #6 (3/4″)
Cutting Speed              3 seconds
Bending Speed             180 degree bend in 7 seconds
Power Supply               Electric motor 115V, 50/60 Hz –10 amp Cutter, 15 amp Bender
Weight (kg)                  212 lbs. Total Weight (96 kg), 25.4 lbs. Cutter, 134.5 lbs.
Dimensions (mm)      28″ (711) L x 18″ (457) W x 21.5″ (546) H with lifting handles
~
~
…..
• • • Buy This Product Online Now • • •
(Just click one of our dealers below)


~~~

DBC-16H Rebar Cutter/Bender



The DBC-16H Combination Rebar Cutter/Bender is another innovative & quality tool from Benner-Nawman, Inc. This portable combination tool provides jobsite cutting and bending of rebar (reinforcing steel) all in one tool. The unique design of this combination unit provides the operator the ability to cut and bend rebar for in-place rebar or stationary fabrication applications. Now you have the ability to cut and bend rebar protruding from a wall or column or just fabricate what you need on a table. Our powerful electric/hydraulic design is for heavy-duty #5 (16 mm) grade 60 rebar cutting and bending. Our competitions’ electric/mechanical design is a medium-duty tool. Our in-place rebar forming ability and heavy-duty rating are features the competitors just can not match. It’s fast and easy to use, there is no changing of attachments, bends rebar up to 180 degrees. This tool was built with the quality & reliability you would expect from Benner-Nawman. This tool was named as one of the most innovative products at the 2008 World of Concrete Exposition and will save you time and money doing on-site fabrication. We include a steel carrying case, tool kit, hydraulic oil, operations manual, and a one year parts and labor warranty.
~~~
Cut / Bend Speed                                3 seconds /180 degree bend in 7 seconds
Bending Roller                                    2.42″ (62 mm) Diameter (R 31)
Clearance (In-place) Cutting            1-3/4″ (44.5 mm) from Surface
Clearance (In-place) Bending          4.5″ (115 mm) from Surface
Rebar Capacity                                    Up to #5 (16mm) Grade 60
Power Supply                                      Electric motor 115v, 50/60 Hz –10 amps
Total Weight (kg)                               40 lbs. (18.2), 62lbs. (28.2) Shipping Weight
Tool Dimensions                                25-1/8″ L x 6-3/8″ W x 8-5/8″ H
                                                                      including lifting handles (cutter up)
 .
…..
