BNG3300i Inverter Generator
Starter Side View

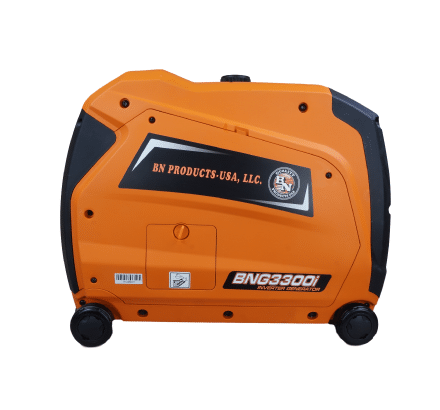

Side View
Front Panel View
Control Panel Closed Receptables
- Starter Side View Click here
- Side View Click here
- Front Panel View Click here
- Control Panel Closed Receptables Click here
PRODUCT SUMMARY
- This Product has been Discontinued by Manufacturer
- This Inverter Generator has been replaced by:
- BNG4000iE Inverter Generator - - The BNG3300i is the lightweight, 1800 Watt-rated, gas-powered Inverter solution from BN Products USA
- The refined, GFCI (ground-fault circuit interruption)-protected electrical output is safe for charging electronics in remote locations.
- 10 Hours of runtime at 50% Load
- Other features include a low-oil indicator light with an automatic shut-off, USB connections, and rain covers for the plug receptacles. The BNG3300i generator is both EPA and CARB certified.
PRODUCT LINKS
- BNG3300i Literature Sheet: CLICK HERE
- BNG3300i Parts Manual: CLICK HERE
- BNG3300i Owner Manual: CLICK HERE
- OSHA - CO Safety & Portable Generators: CLICK HERE
- BN Products-USA™ Generator Warranty: CLICK HERE
| Power (max) | 3300 Watts |
| Power (rated) | 3000 Watts |
| Voltage | 120V 60 Hz Single Phase 25A |
| Starting Type | Electric or Pull Start |
| Output receptacles | Duplex 120V GFCI (20A) |
| 3-Prong Twist Lock 120V (25A max) | |
| 12-Volt Power Connection (8.3A) | |
| USB Connection (1.0A and 2.1A) | |
| Runtime @ 50% Load hrs/tank | 10 hours |
| Runtime @ 100% Load hrs/tank | 6 hours |
| Fuel Capacity | 2.6 Gal. |
| Wheel Kit | Included |
| CARB Certified | Yes |
| Unit Dimensions | W 17.5" x L 23" x H 20" |
| W 44.5cm x L 58.4cm x H 50.8cm | |
| Unit Weight | 99 lbs. (44.9kg) |
| Engine | Model 170F/P |
| Sound Level | 56 dB @ 23 ft. |
| Waranty | 750 hours or 1 year |
