Summary of Tool

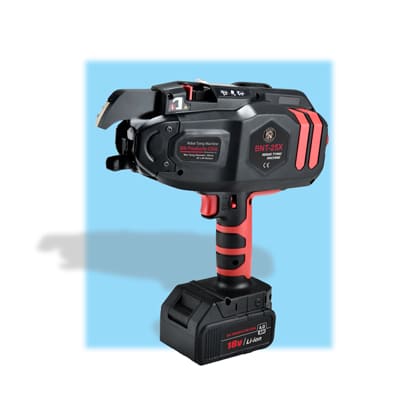

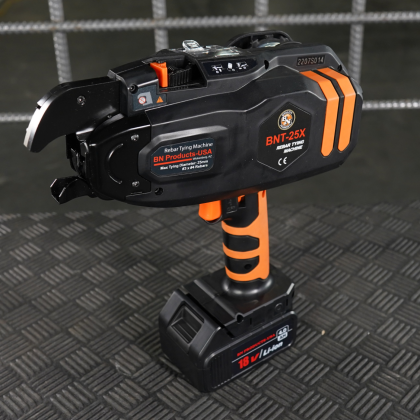

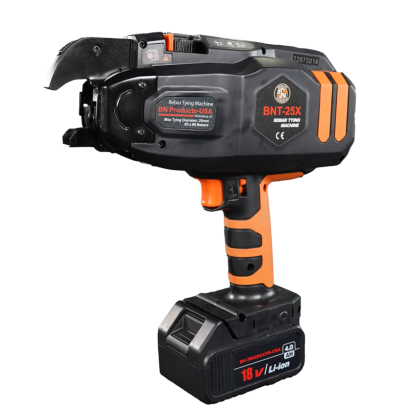

- The BNT-25X Rebar Tying Tool is our smallest automatic rebar tying tool; lightweight and has a compact, easy to hold glove-friendly grip.
- Runs on a 18V Lithium-Ion quick-charge battery, that drives a brushless twisting motor.

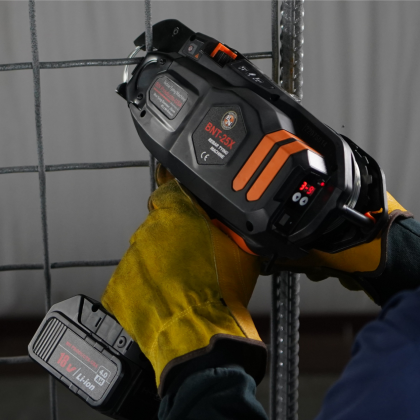

- Like our standard BNT-40X and BNT-58X models, this smaller version is designed for tying wire mesh or up to a No. 3 and No. 4 rebars together and is designed to conserve wire.
- Product is shipped with two batteries included, a charger, and four spools of wire ready to use.
- Operator Manual for BNT-25X
- Literature Sheet for BNT-25X
- Parts Guide for the BNT-25X (Digital Display)
- Parts Guide for the BNT-25X (Dial Adjust)
- BNT-X Series Maintenance: Common Fault Guide: CLICK HERE
- BNT Tiger Tier™ Wire Supplies
- BNT Tiger Tier™ Accessories
|Maximum Tying Diameter||1" (25mm) #3 x #4 bar|
|Battery (75 min quick charge)||Li-Ion 18V, 4.0Ah, 72Wh (BNTLI-20)|
|Weight||5.5 lbs. (2.5 kg)|
|Turns per tie||3 Wraps|
|Ties per Coil||Up to 160 - 220|
|Ties per Charge||4000-5000 ties per charge|
|Wire Size||21 GA|
|Length of wire per tie||23.25" (591mm)|
|Dimensions (L) x (W) x (H)||11.06" x 4.29" x 11.81" (281mm x 109mm x 300mm)|
