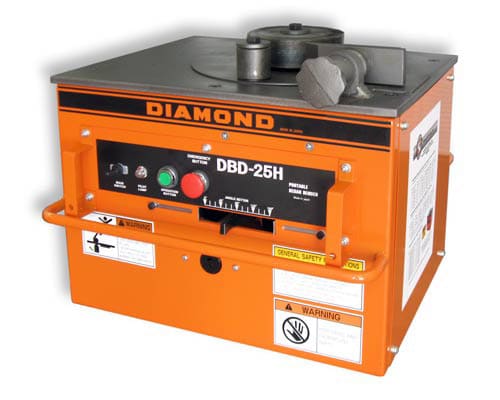

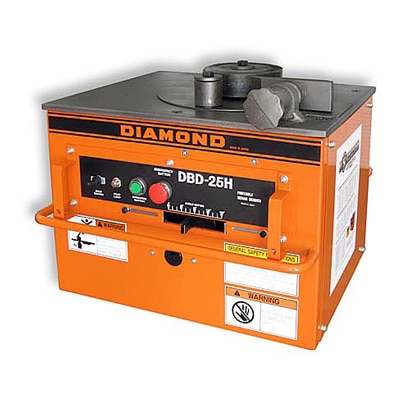

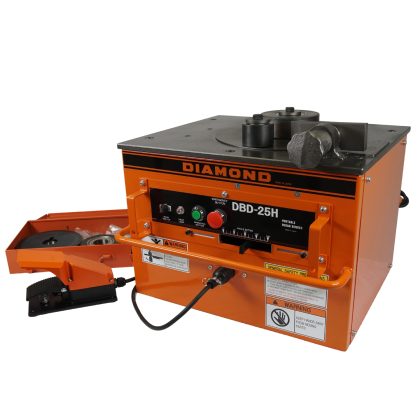

DBD-25H (#8) Table Style Rebar Bender

PRODUCT SUMMARY

DBD-25H #8 Electric Rebar Bender

The DBD-25H #8 electric rebar bender from BN Products-USA is a heavy-duty, table-style rebar bending machine designed for efficient and accurate bending of reinforcing steel bars. Capable of bending up to #8 (1-inch, 25 mm) Grade 60 rebar, this portable electric rebar bender is suitable for construction sites, concrete reinforcement projects, and rebar fabrication shops.

Featuring an adjustable bending angle selector, two preset angle locks, and a foot pedal control switch, the DBD-25H is designed to support repeatable bending operations while reducing the manual effort required to shape reinforcing steel.

Features and Benefits

• #8 Rebar Bending Capacity: Bends up to #8 (1-inch, 25 mm) Grade 60 reinforcing steel.
• Multiple Rebar Bending: Capable of bending multiple smaller reinforcing bars simultaneously within specified capacities.
• Adjustable Bending Angles: Lever-type angle selector allows bends from 0 to 180 degrees.
• Two Preset Angle Locks: Enables operators to repeat the same bending angle for consistent results.
• Heavy-Duty Table-Style Design: Suitable for construction sites and shop environments.
• Emergency Stop Switch: Includes an emergency stop control.
• Two Lifting Handles: Integrated handles assist with moving and positioning the machine.
• Foot Pedal Control: Standard foot pedal switch allows hands-free activation during bending.
• Industrial Construction: Designed for demanding reinforcing steel fabrication applications.

Multiple Rebar Bending Capacity

The DBD-25H can bend multiple reinforcing bars simultaneously, depending on bar size:

• #3 Rebar: Up to 4 bars at one time
• #4 Rebar: Up to 3 bars at one time
• #5 Rebar: Up to 2 bars at one time
• #6 Rebar: Up to 2 bars at one time
• #7 Rebar: Up to 1 bar at one time
• #8 Rebar: Up to 1 bar at one time

Applications

The DBD-25H #8 electric rebar bender is designed for reinforcing steel fabrication and concrete construction applications, including foundations, structural reinforcement, and jobsite rebar preparation.

Its adjustable angle selector and preset bending locks make it useful for repeated bending operations requiring consistent angles.

DBD-25H Specifications

• Model Number: DBD-25H
• Tool Type: Portable Table-Style Rebar Bender
• Maximum Bending Capacity: #8 (1-inch, 25 mm) Rebar
• Rebar Grade: Grade 60
• Bending Angle: 0–180 Degrees
• Angle Controls: Lever-Type Selector with Two Preset Angle Locks
• Safety Features: Emergency Stop Switch
• Handling: Two Lifting Handles
• Operation: Foot Pedal Control Switch

Included Accessories

The DBD-25H rebar bender package includes:

• Nine bending rollers
• Two steel carrying cases for rollers
• Tool kit
• Bender cover
• Standard foot pedal control switch

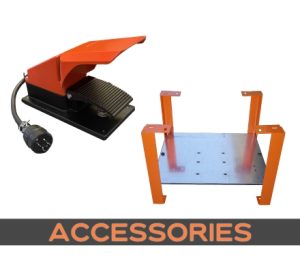

Optional Accessories: Circular pattern bending rollers are available separately.

Product Downloads

For additional technical information, operating instructions, and product specifications, refer to the available product downloads below.

DBD-25H Roller Chart   |   Manual   |   Brochure

Parts Guide
