PRODUCT SUMMARY

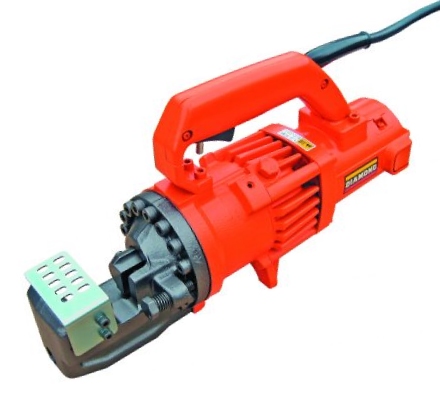

- The DC-20WH is a heavy-duty hydraulic rebar cutter that is also portable! This machine will safely, and cleanly cut rebar up to #6 (3/4”) diameter (Grade 60).
- Continuous development, since 1972, has led to higher output, lower weight, and extreme toughness and durability. The DC-20WH is the most popular Rebar Cutter sold in the United States.
- The DC-20WH is a spark-free, efficient, cold-cutting shear - unlike saws, abrasive blades and cutting torches
- A safety relief valve for retracting the piston and a cutting guard are standard features
- Ships complete in a carrying case, hydraulic oil and a tool kit. Tune-up kits are sold separately.
PRODUCT LINKS
- PDF Literature Sheet: CLICK HERE
- PDF Parts Guide: CLICK HERE
- PDF Product Manual: CLICK HERE
- DC-20WH Bleeding Air Instructions: CLICK HERE
- DC-WIRING - Aluminum Handle: CLICK HERE
Maximum Cutting Diameter | 3/4" #6 Rebar (19mm) - Grade 60 |
Cutting Speed / Pressure | 3 Seconds / 15 Tons |
Voltage/Amperage | 115V 50/60Hz / 10 amps |
Tool Weight | 25.4 lbs (11.5 kg) |
Dimensions L x W x H | 16" (410mm) x 4.3" (110mm) x 8.2" (210mm) |
CSA Certified | Yes |
ETL Listed | Yes |
