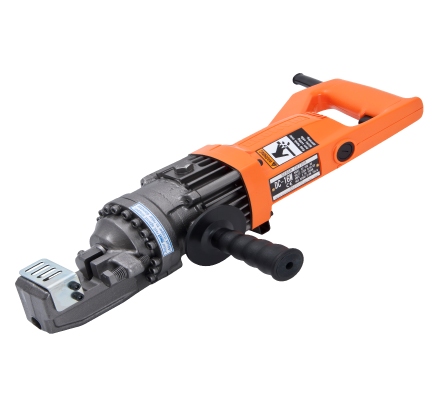

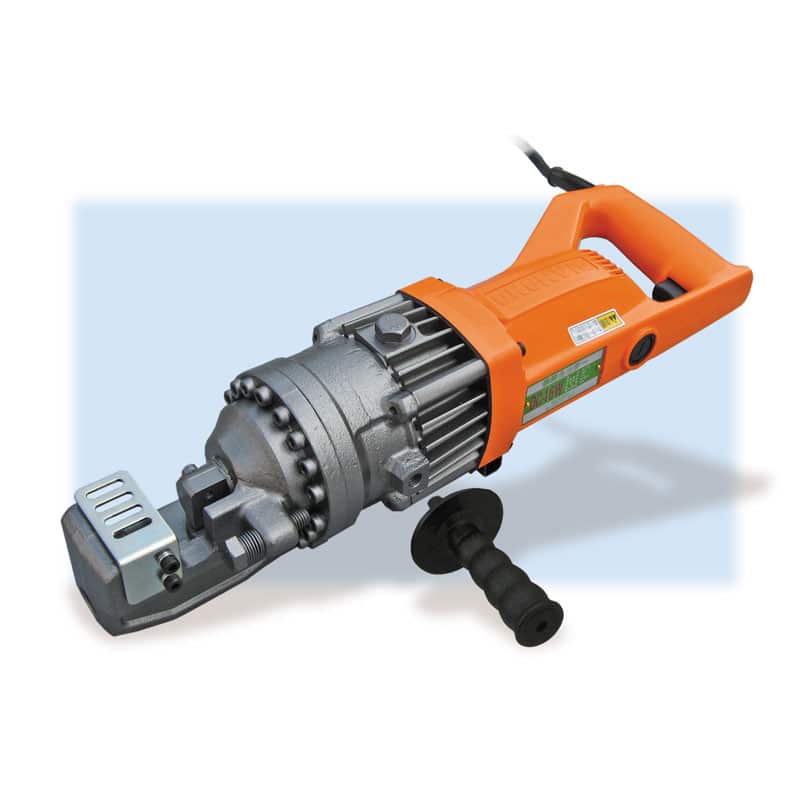

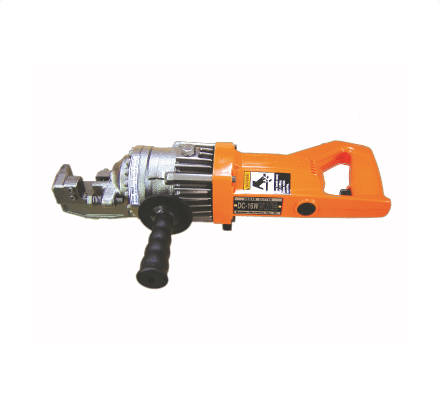

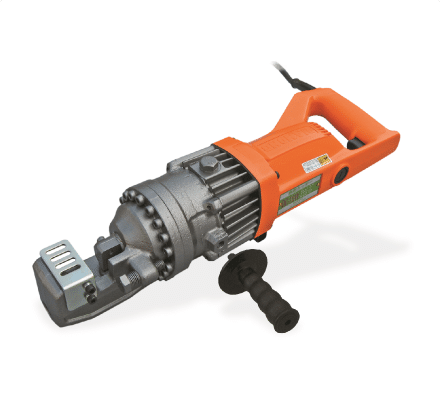

DC-16W #5 (16mm) Portable Rebar Cutter

DC-16W Product Overview Video

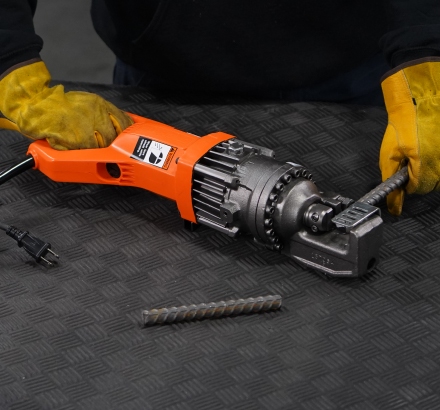

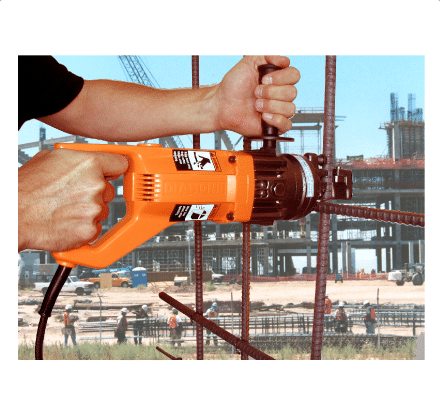

DC-16W In Action

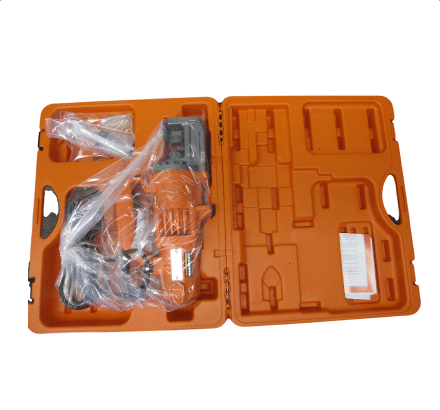

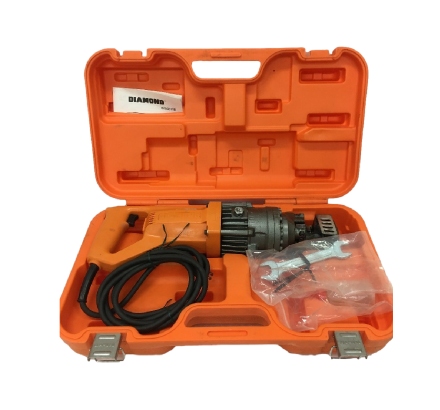

DC-16W Carrying Case

DC-16W Cutting Blocks - Close-up

- DC-16W Product Overview Video Click here
- DC-16W In Action Click here
- DC-16W Carrying Case Click here
- DC-16W Cutting Blocks - Close-up Click here
PRODUCT SUMMARY
- The DC-16W portable heavy-duty rebar cutter will safely, efficiently, and cleanly cut rebar up to #5 (5/8”) diameter grade 60. This self-contained electric/hydraulic unit will also cut other items like chain, bolts and rod but is specifically designed for rebar. The DC-16W cutter is designed for effortless vertical and horizontal cutting applications.
- The DC-16W is a cold-cutting shear unlike saws with abrasive blades and cutting torches. There are no sparks or flame and no trailing hoses to snare equipment or worker’s feet. A safety relief valve for retracting the piston and a cutting guard are standard features, along with a removable side handle. Ships complete in a carrying case with hydraulic oil and a tool kit.
PRODUCT LINKS
- Printable literature sheet: CLICK HERE
- Printable parts guide: CLICK HERE
- Printable Product Manual: CLICK HERE
Maximum Cutting Diameter | 5/8" #5 Rebar (16mm) - Grade 60 |
Cutting Speed / Pressure | 2.5 Seconds / 15 Tons |
Voltage/Amperage | 115V 50/60Hz / 10 amps |
Tool Weight | 17.6 lbs (8 kg) |
Dimensions (w/ side handle) L x W x H | 18" (460mm) x 10.5" (270mm) x 4.5" (115mm) |
