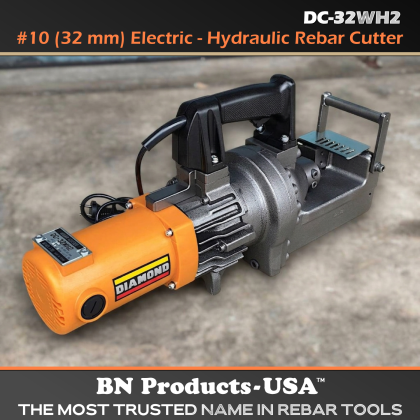

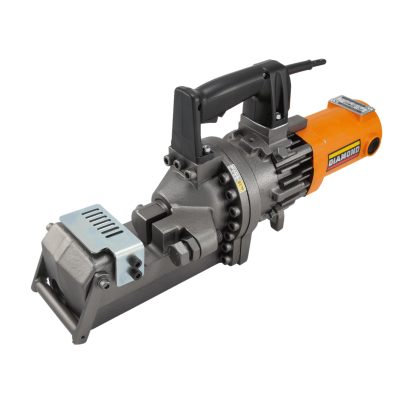

DC-32WH2 #10 (32mm) Heavy-Duty Rebar Cutter

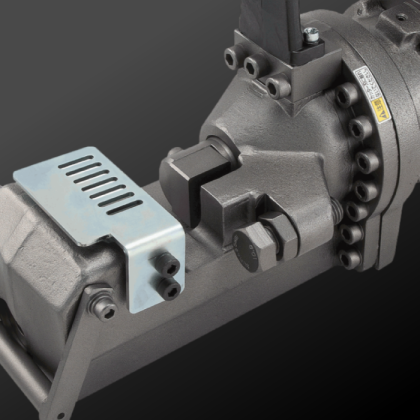

Cutting head w/Stopper Bolt
DC-32WH Cutting Blocks

PRODUCT SUMMARY

Coming Soon:  The next generation of quality Diamond® Rebar Tools
  • The DC-32WH2 is a heavy-duty rebar cutter that will safely, efficiently, and cleanly cut Grade 60 rebar up to #10 (1 ¼” / 32 mm) diameters
  • This machine is ideal for bridge and highway work, and in small rebar fabrication shop
  • This unit may be paired in combination with a DBD-32X rebar bender on a stand, as a combination kit for bending and cutting #10 rebar
  • There are no sparks or flame so it also works great on epoxy-coated rebar. It’s the fastest, safest, and most economical way to cut rebar on the job.
  • A safety relief valve for retracting the piston and a cutting guard are standard features
  • Tool package includes a wood carrying box, tool kid, and hydraulic oil
DOWNLOADS

Brochure  |  Parts Guide  |  Operator Manual

SDS - Hydraulic Oil

 Close
Maximum Cutting Diameter 1-1/4" #10 Rebar (32mm) - Grade 60
Cutting Speed / Pressure 7 Seconds / 45 Tons
Voltage/Amperage 115V 50/60Hz / 18 amps
Tool Weight 79 lbs (35.8 kg)
Dimensions L x W x H 23.1"(591mm) x 7" (180mm) x 10.6" (272mm)
