MBC-16B High Leverage Bender/Cutter
|
MBC-16B High Leverage Bender/Cutter

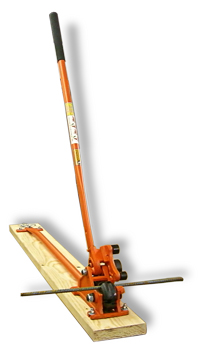

This manual tool has been designed to cut and bend rebar up to #5 (5/8”)
grade 60. This new high-leverage arrangement greatly reduces cutting
and bending effort.
- Longer handle and cam mechanism provides greater leverage when cutting
and bending grade 60 rebar
- Adjustable 2-1/2” (63.5mm) diameter bending roller.
- Replaceable cutting jaws have two open slots with innovative shaped
blades to prevent chipping of the jaws
- Sturdy frame design is firmly mounted on a 2” x 8” x 60” wooden
board ready to use
- Other features include a comfortable 12” long no-slip handle
grip and a lifting chain & ring to make it easier to carry to and
from the job site.
|
| Model No. |
MBC-16B |
| UPC Code |
0-85694-62216-5 |
| Cutting Capacity |
#5 (5/8") (16 mm) rebar grade 60 (420 MPa) |
| Bending Capacity |
#5 (5/8") (16 mm) rebar grade 60 (420 MPa) |
| Bending Capability |
0 - 180° |
| Replacement |
Jaw Set |
| Shipping Weight |
#MBC-16RJS (set includes other wear items)
7 lbs. (3.2 kg) |
| Shipping Weight |
Weight 57 lbs. (26 kg) with wood board |
| Overall Dimentions |
60.5" L x 7.5" W x 10" H |
| Packaging |
Cardboard carton - 2.89 cubic feet |
| Warranty |
6 months (includes parts and labor) |
