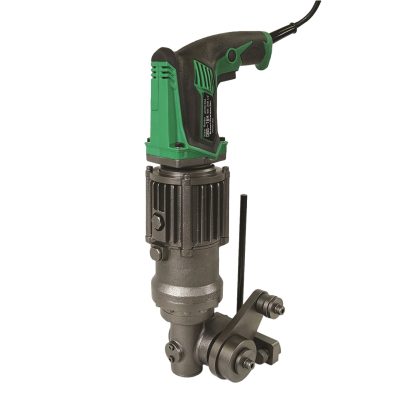

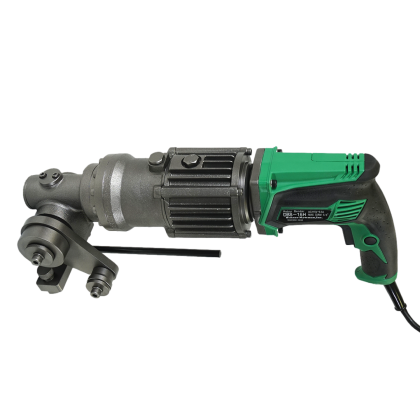

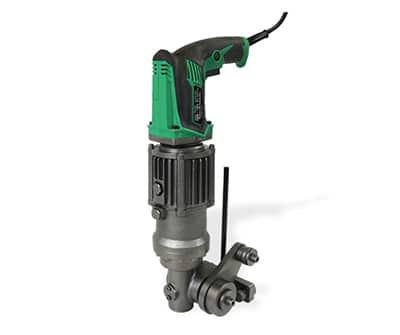

DBS-16H In-Place 5/8″ #5 Rebar Bender

Quick Demo!
Overview

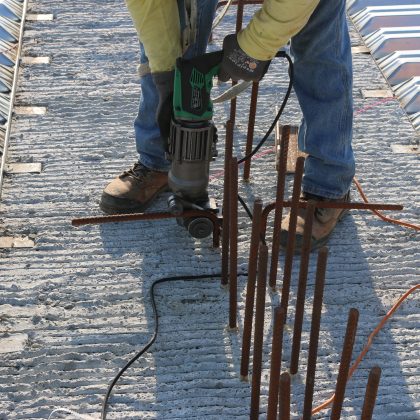

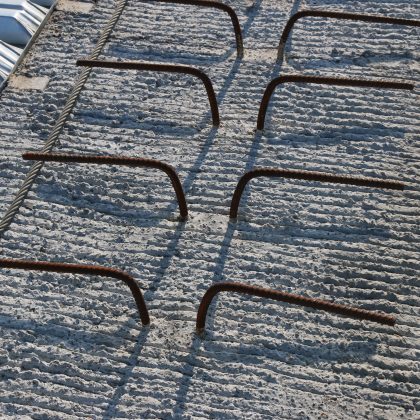

In-Place Bending Applications
DBS-16H In-Place Rebar Cutter - Vertical View

PRODUCT SUMMARY

New and improved!  The DBS-16H is a portable, electric/hydraulic rebar bender designed for bending rebar "in-place" on construction sites. It's particularly useful for bending rebar tails in concrete and block wall construction. This tool can bend rebar up to #5 (5/8") grade 60, and it can achieve a 90-degree bend in under four seconds.

Key Features:

  • In-place Bending: Specifically designed for bending rebar directly on the job site, even in tight spaces.
  • Portability: Weighing only 26.5 lbs, it's lightweight and easy to handle on construction sites.
  • Speed and Efficiency: Bends rebar up to 90 degrees in under 4 seconds.
  • Power Efficiency: Draws less than 9 amps, making it suitable for use with standard extension cords.
  • Versatility: Can bend rebar at any height or location along the bar.
  • Bending Radius: Features a 1.25" bending radius, offering precision and strength.

Applications:

  • Concrete Work: Ideal for bending rebar tails in concrete foundations, walls, and columns.
  • Block Wall Construction: Specifically designed for bending rebar in block walls, allowing for efficient and accurate tie-ins.
  • General Construction: Suitable for various rebar bending needs on any construction project.
DOWNLOADS

Brochure   |   Manual   |   Parts Guide

 Close

BUY ONLINE | Available Now from these Distributors

BN Product
Maximum Bending Diameter 5/8" (#5) Rebar (22mm) Grade 60
Bending Angle / Speed Up to 90 degrees / 4 seconds
Voltage/Amperage 120V 50/60Hz / 11 amps / 1050 W
Tool Weight 26.5 lbs (12 kg)
Dimensions L x W x H (mm) 18.5" x 5.7" x 10.7 (470 x 145 x 270)
