DC-32WH #10 (32mm) Portable Rebar Cutter

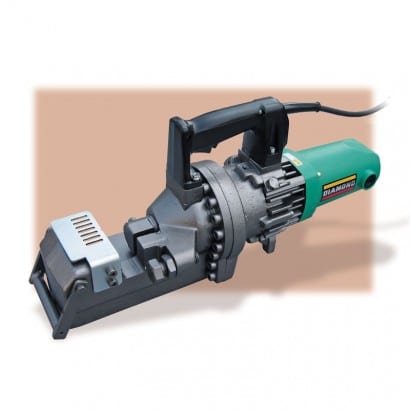

DC-32WH Portable Rebar Cutter for #10 32mm rebar
DC-32WH In Action 1
DC-32WH In Action 2
Cutting head w/Stopper Bolt

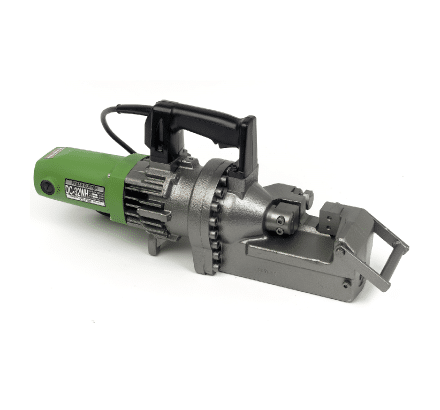

DC-32WH Opposite Side View
DC-32WH Cutting Blocks

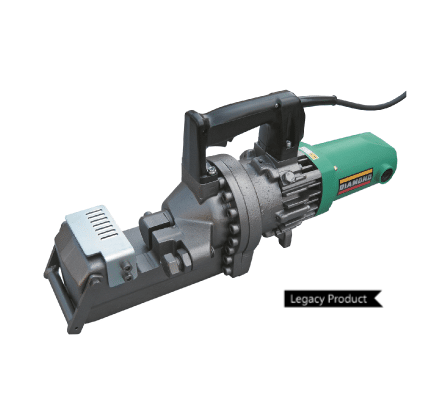

DC-32WH Portable Rebar Cutter for #10 32mm rebar

PRODUCT SUMMARY

Important Note: The DC-32WH Portable Rebar Cutter has been replaced by the newer, next-generation DC-32WH2 #10 Rebar Cutter. Customers looking for the current model should visit the DC-32WH2 product page.

  • The DC-32WH Portable Rebar Cutter is a heavy-duty hydraulic rebar cutting tool designed to safely, efficiently, and cleanly cut rebar up to #10 (32 mm / 1-1/4”) Grade 60.
  • With a cutting speed of approximately 7 seconds and 45 tons of cutting pressure, the DC-32WH provides powerful rebar cutting performance for demanding applications. It is well suited for bridge and highway work as well as use in smaller rebar fabrication shops.
  • The hydraulic cutting process produces no sparks or flame, making the DC-32WH an alternative to open-flame cutting methods. A cutting guard and safety relief valve for retracting the piston are standard features.
  • The DC-32WH can also be incorporated with a DBD-32X rebar bender in a stand, workstation table, or trailer configuration for rebar fabrication applications.

DC-32WH2 #10 Rebar Cutter



DOWNLOADS

 Close
Maximum Cutting Diameter 1-1/4" #10 Rebar (32mm) - Grade 60
Cutting Speed / Pressure 7 Seconds / 45 Tons
Voltage/Amperage 115V 50/60Hz / 18 amps
Tool Weight 79 lbs (35.8 kg)
Dimensions L x W x H 23.1"(591mm) x 7" (180mm) x 10.6" (272mm)
