BNT-58X Tiger™ Tier
Using the NextGen Rebar Tier - BNMT-X Series
BNT-58X Carrying Case
BNT-58X Battery Charger
How To Video: Properly Load Wire Spools (BNT-X series rebar tying machines)
How To Video: Clearing a Wire Jam (BNT-X series rebar tying machines)
- Using the NextGen Rebar Tier - BNMT-X Series Click here
- BNT-58X Carrying Case Click here
- BNT-58X Battery Charger Click here
- How To Video: Properly Load Wire Spools (BNT-X series rebar tying machines) Click here
- How To Video: Clearing a Wire Jam (BNT-X series rebar tying machines) Click here
PRODUCT SUMMARY

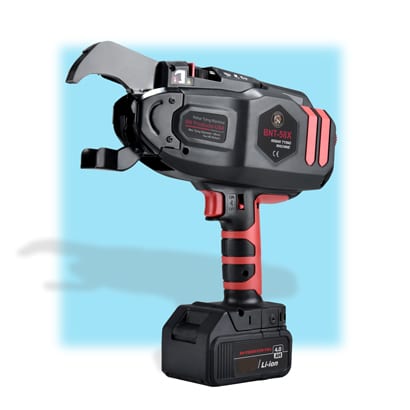

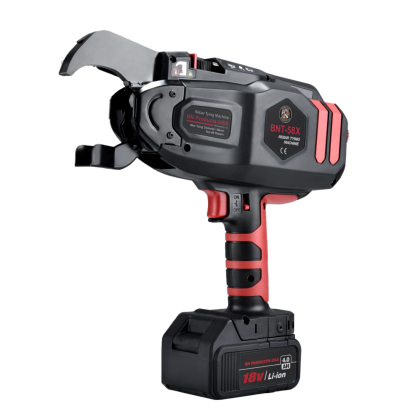

- The BNT-58X Rebar Tying Tool is our largest automatic rebar tying tool, yet this Tiger Tier™ is still lightweight, and has a compact, easy-to-hold glove-friendly grip
- An 18V Lithium-Ion quick-charge battery drives a brushless twisting motor for extreme battery life
- On two No.8 rebars this tool will make over 4,000 ties on a single charge
- The tool kit ships with two batteries included, a charger, and four spools of wire ready to use
PRODUCT LINKS
- Operator Manual for BNT-58X
- Literature Sheet for BNT-58X
- Parts Guide for the BNT-58X (Digital Display)
- Parts Guide for the BNT-58X (Dial Adjust)
- BNT-X Series Maintenance: Common Fault Guide: CLICK HERE
- BNT Tiger Tier™ Wire Supplies
- BNT Tiger Tier™ Accessories
BUY ONLINE | Available Now from these Distributors
| Maximum Tying Diameter | 2.283" (58mm) #8 x #8 bar |
| Battery (75 min quick charge) | Li-Ion 18V, 4.0Ah, 72Wh (BNTLI-20) |
| Weight | 6.2 lbs. (2.8 kg) |
| Turns per tie | 3 Wraps |
| Ties per Coil | Up to 90 - 120 |
| Ties per Charge | 4000-5000 ties per charge |
| Wire Size | 21 GA |
| Length of wire per tie | 41.3" (1050mm) |
| Dimensions (L) x (W) x (H) | 12.28" x 4.29" x 12.2" (312mm x 109mm x 310mm) |
