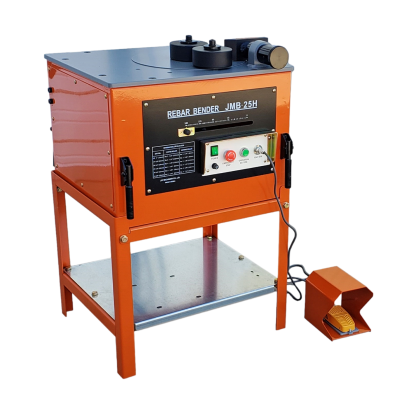

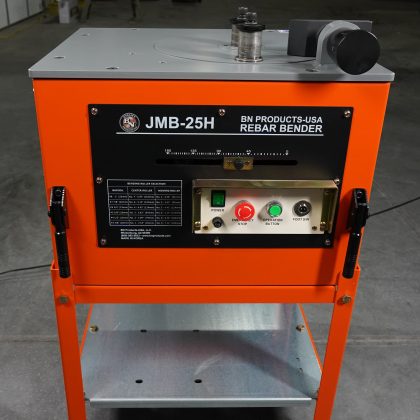

JMB-25H Table-Top #8 Rebar Bender
Video Demo: JMB-25H At a Glance

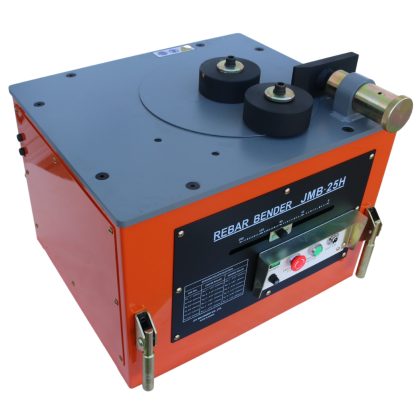

JMB-25H Top View

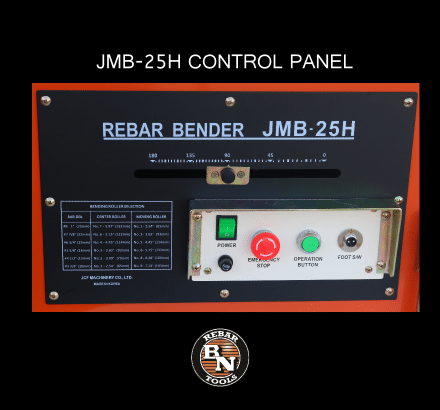

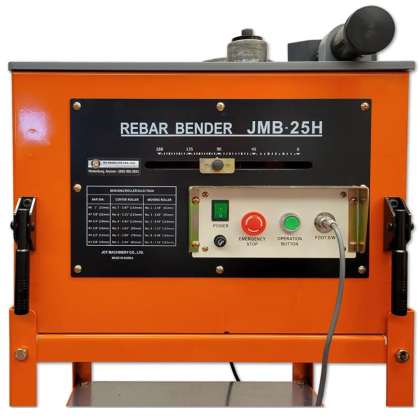

JMB-25H Control Panel Close-Up

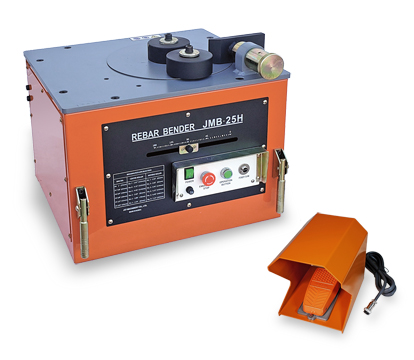

JMB-25H With Foot Pedal
- Video Demo: JMB-25H At a Glance Click here
- JMB-25H Top View Click here
- JMB-25H Control Panel Close-Up Click here
- JMB-25H With Foot Pedal Click here
PRODUCT SUMMARY
- The JMB-25 is a heavy-duty table-style bending machine, featuring a preset angle lock for repeating the same angle bends; accurately bends any angle from 0-180 degrees
- Bends (4) #3 rebar, (3) #4; (2) #5 or #6 rebar and (1) #7 or #8 rebar at one time. An emergency stop switch and four lifting handles are standard features

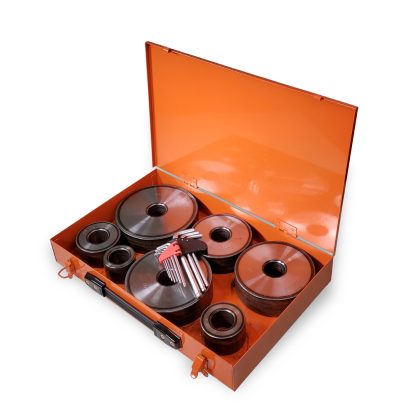

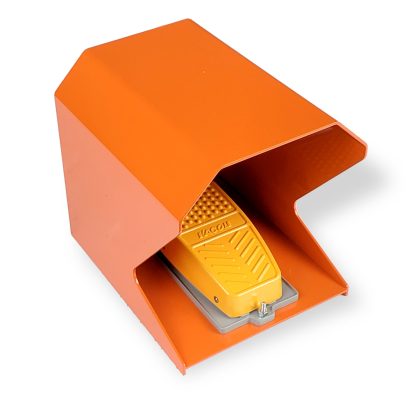

- The JMB-25H portable rebar bender comes complete with (9) bending rollers in a steel carrying case, a tool kit, a standard foot pedal control switch for hands-free bending, and a one-year warranty.
- Designed for: No. 8, grade 60, rebar bending capacity, meets ACI 318-05.
PRODUCT LINKS
- PDF Operator Manual: CLICK HERE
- PDF JMB-25H Roller Selection Chart: CLICK HERE
- PDF Literature Sheet: CLICK HERE
- PDF Parts Guide: CLICK HERE
BUY ONLINE | Available Now from these Distributors
| Maximum rebar diameter: | #8 (1") (25mm) Grade 60 |
| Bending Angle: | 0 – 180 degrees |

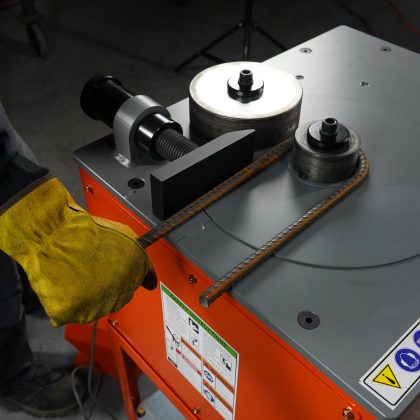

| Bending Speed: | 9 Seconds for 180 degree bend |
| Power Supply: | 115V 50/60Hz -15 amps |
| Weight (kg): | 210 lbs. (95 kg) |
| Dimensions (mm): | 21" (540) L x 22.6" (580) W x 17.2" (440) H |
