DBR-25WH Portable Rebar Bender

DBR-25WH Product Overview Video

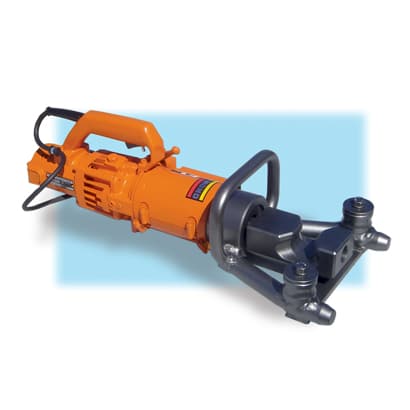

DBR-25WH Product Picture

Summary of Tool

  • The DBR-25WH is a portable heavy-duty electric/hydraulic rebar bender and straightener
  • This unit helps save valuable man-hours by cleanly and efficiently bending or straightening bent rebar:
  • It functions as a simple 90-degree portable electric rebar bender

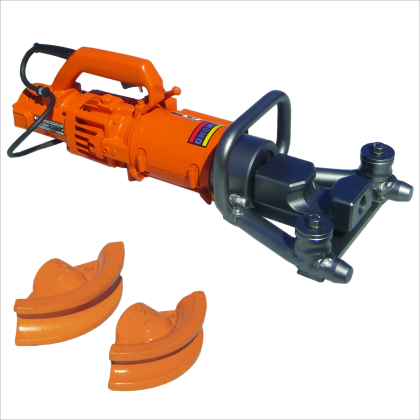

    • The interchangeable bending hook covers rebar diameters from #4 to #8 grade 60
    • Maximum pressure for bending and straightening ranges from 8.5 to 11 tons
  • Portable and versatile enough to bend or straighten rebar in-place with its push/pull hydraulic capabilities, bending a 90-degree angle in only four seconds
  • Ships complete in a wooden carrying case with hydraulic oil and a tool kit
PRODUCT LINKS

vCalc Rebar Calculator

BUY ONLINE -- Available Now from these Distributors

BN Product
Maximum Bending Diameter 1" #8 Rebar (25mm) Grade 60
Bending Angle Up to 94 degrees (1/2") - up to 90 degrees ( 1")
Voltage/Amperage 115V 50/60Hz / 12 amps
Tool Weight 57.3 lbs (26 kg)
Dimensions L x W x H 25.75" (660mm) x 10.5" (270mm) x 7.8" (200mm)
