DBR-25WH Portable Rebar Bender

OLYMPUS DIGITAL CAMERA

DBR-25WH Product Overview Video

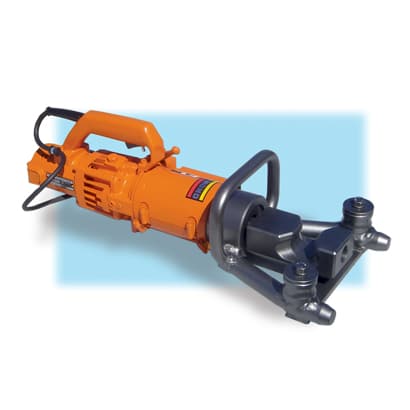

DBR-25WH Product Picture

OLYMPUS DIGITAL CAMERA

Summary of Tool

The DBR-25WH is a portable heavy-duty electric/hydraulic rebar bender and straightener. It helps save valuable man-hours by cleanly and efficiently bending or straightening bent rebar. It functions as a simple 90-degree portable electric rebar bender. The interchangeable bending hook covers rebar diameters from #4 to #8 grade 60. Maximum pressure for bending and straightening ranges from 8.5 to 11 tons. It’s portable and versatile enough to bend or straighten rebar in-place with its push/pull hydraulic capabilities. It will bend a 90-degree angle in only (4) seconds. The bending head also rotates 360 degrees. Ships complete in a wooden carrying case with hydraulic oil and a tool kit. Solves bending applications other tools can’t even attempt.

For a printable DBR-25WH product manual: CLICK HERE

Distributor Ad

Buy Now Online!

BN Product
  • cci
  • ToolFetch
  • Southern-Tools
  • Construction Complete
  • jimnslim
  • Ambient Weather
  • Tru Supply Logo
Maximum Bending Diameter 1" #8 Rebar (25mm) Grade 60
Bending Angle Up to 94 degrees (1/2") - up to 90 degrees ( 1")
Voltage/Amperage 115V 50/60Hz / 12 amps
Tool Weight 57.3 lbs (26 kg)
Dimensions L x W x H 25.75" (660mm) x 10.5" (270mm) x 7.8" (200mm)
