The DBD-32X is a heavy-duty portable table-type bender. This unit is the largest 115 volt portable rebar bender available. This powerful electrically driven mechanical unit will easily bend 1-1/8” Grade 60 rebar 180 degrees in only 8 seconds. This fast and accurate bender is a valuable tool for small to medium size production shops. It comes standard with a hands-free foot pedal control switch and a complete bending radius roller set. This unit is available separately or in combination with a cutter mounted on a skid, stand or trailer unit. An optional stand is also available.

Maximum Bending Diameter      7/8″ (#7) Rebar (22mm) Grade 60

Bending Angle / Speed                 Up to 180 degrees / 6 seconds
Voltage/Amperage                        115V 50/60Hz / 12 amps

Tool Weight                                    190 lbs (86 kg)

Dimensions L x W x H                 19″ (490mm) x 21.5″ (550mm) x 17.2″ (440mm)

Maximum Bending Diameter          3/4″ (#6) Rebar (19mm) Grade 60
Bending Angle / Speed                     Up to 180 degrees / 7 seconds
Voltage/Amperage                            115V 50/60Hz / 15 amps

Tool Weight                                        134.5 lbs (61 kg)

Dimensions L x W x H                     16.4″ (420mm) x 18″ (462mm) x 16.2″ (415mm)

The DBD-16X heavy-duty portable rebar bender helps save valuable man-hours by bending rebar up to #5 (5/8”) grade 60 at the job site or in your shop. This strong electrical-mechanical bender has two preset angle locks for repeating the same angle bend. The dial-type angle selector can be set to accurately bend any angle from 0-180 degrees. Bends (3) each #3 rebar or (2) each #4 rebar or (1) each #5 rebar at one time. An emergency stop switch and two side lifting handles are standard features. Ships complete with set of (6) bending rollers in a steel carrying case, a tool kit, and a standard foot pedal control switch for hands-free bending.

 ~~~

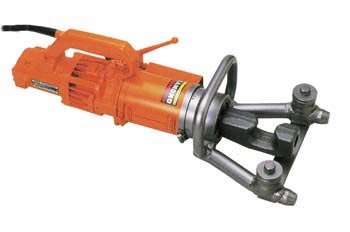

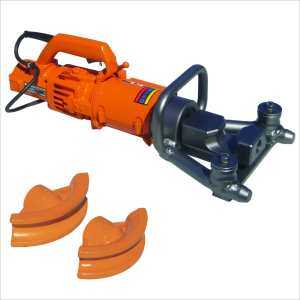

The DBR-25WH is a portable heavy-duty electric/hydraulic rebar bender and straightener. It helps save valuable man-hours by cleanly and efficiently bending or straightening bent rebar. It functions as a simple 90-degree portable electric rebar bender. The interchangeable bending hook covers rebar diameters from #4 to #8 grade 60. Maximum pressure for bending and straightening ranges from 8.5 to 11 tons. It’s portable and versatile enough to bend or straighten rebar in-place with its push/pull hydraulic capabilities. It will bend a 90-degree angle in only (4) seconds. The bending head also rotates 360 degrees. Ships complete in a wooden carrying case with hydraulic oil and a tool kit. Solves bending applications other tools can’t even attempt.

~~~

 ~~~

 ~~~
